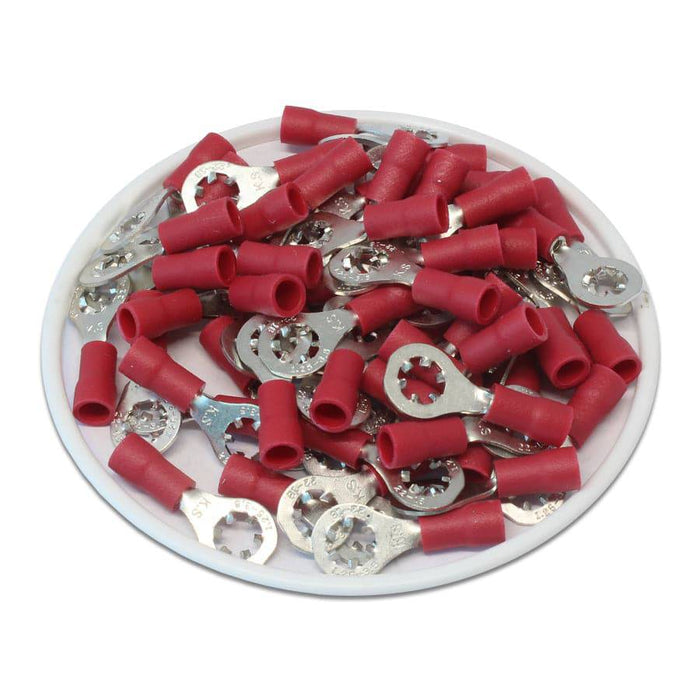

STRV1-3.7 - Vinyl Insulated Star Ring Terminal - 22-16 AWG -Stud #6

Pack Quantity

Ring tongue design offers a tight and secure connection in high vibration areas, Vinyl insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.

Dimensions & Features:

T: 0.6mm (0.02")
L: 22.8mm (0.89")
F: 8.5mm (0.34")
E: 10mm (0.39")
W: 9.5mm (0.37")
D 3.8mm (0.15")
D1: 1.7mm (0.07")
D2: 3.7mm (0.15")
D3: 6mm (0.24")
Stud Size: #6
Color: Red
Terminal Material: Tin-Plated Copper
Insulation Material: Nylon
Max Electrical Rating: 600 Volts (105oC)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:

Cross References

Cross References:

McMaster-Carr: 69665K74
