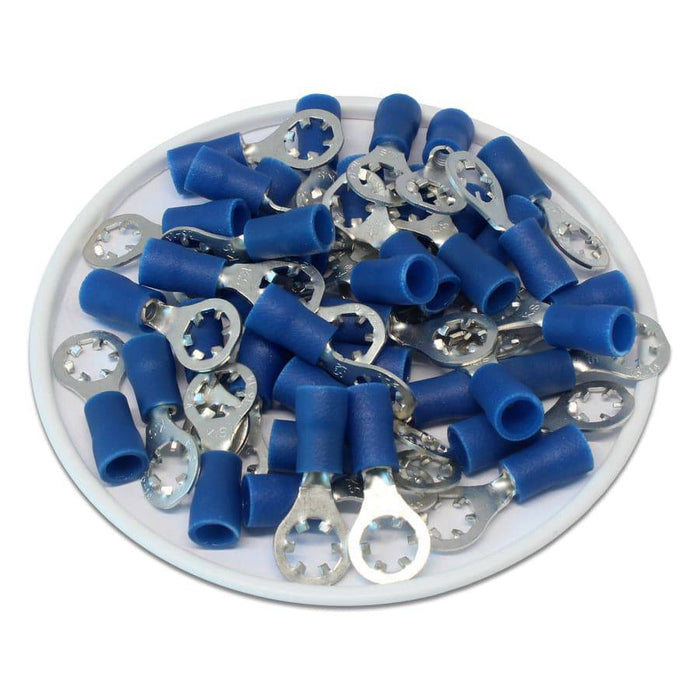

STRV2-4 - Vinyl Insulated Star Ring Terminal - 16-14 AWG - Stud #8

Original price $8.46 - Original price $8.46
Original price
$8.46
$8.46 - $8.46
Current price $8.46
SKU STRV2-4
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces

Ring tongue design offers a tight and secure connection in high vibration areas, Vinyl insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.


Dimensions & Features:

T: 0.6mm (0.02")
L: 22.8mm (0.89")
F: 8.5mm (0.34")
E: 10mm (0.39")
W: 9.5mm (0.37")
D 4.5mm (0.18")
D1: 2.3mm (0.09")
D2: 4.3mm (0.17")
Stud Size: #8
Color: Blue
Terminal Material: Tin-Plated Brass
Insulation Material: Nylon
Max Electrical Rating: 600 Volts (105oC)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:

Cross References

Cross References:

McMaster-Carr: 69665K85
