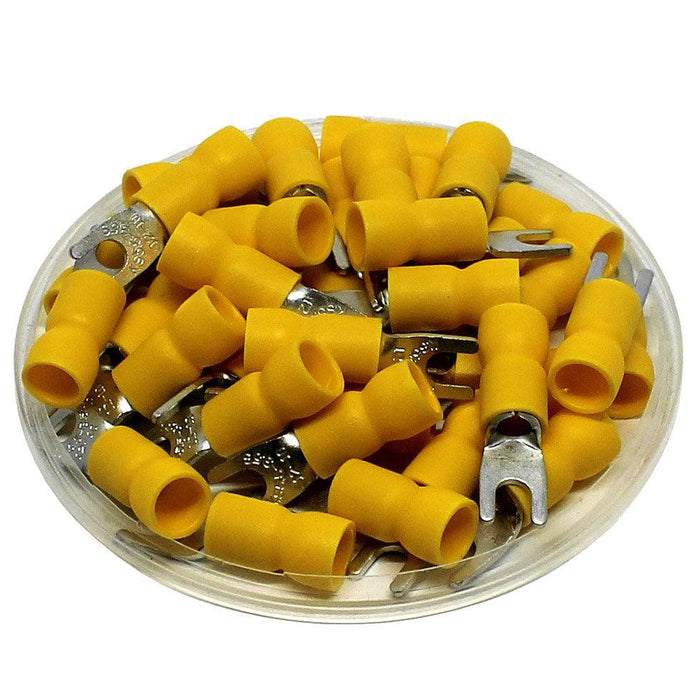

SVEL5-4 - Vinyl Insulated Spade Terminals - 12-10AWG

Original price $14.38 - Original price $14.38
Original price
$14.38
$14.38 - $14.38
Current price $14.38
SKU SVEL5-4
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Vinyl insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2

Dimensions & Features:

Wire Size: 12-10 AWG
T: 1.0mm (0.04")
L: 26.6mm (1.05)
F: 7.0mm (0.28")
E: 14.1mm (0.56")
W: 9.0mm (0.35")
D: 6.4mm (0.25")
D1: 3.4mm (0.13")
D2: 4.3mm (0.17")
Temperature Rating: 105°C
Voltage Rating: 600 Volts
Max Electrical Current: 50AMP
Terminal Insulation: Vinyl
Terminal Material: Tin-Plated Copper
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
