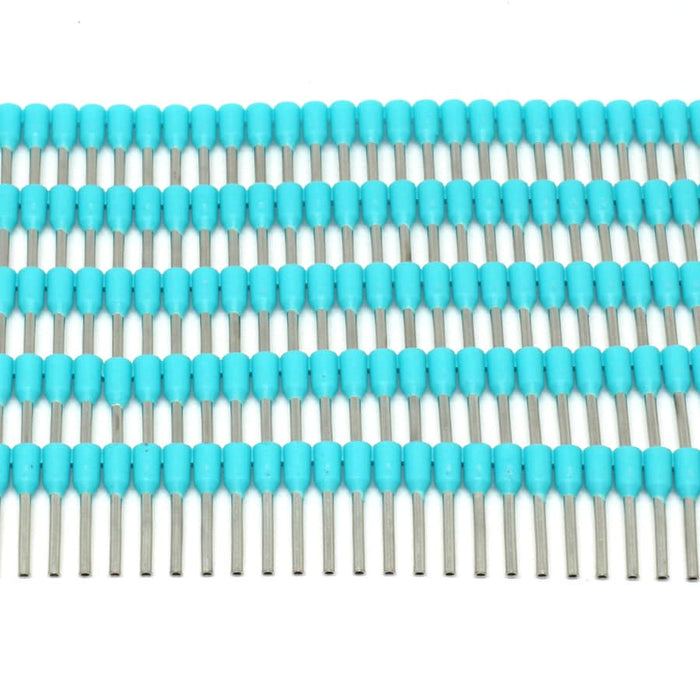

SW03408 - 24 & 22 AWG Strips of Insulated Wire Ferrules, 8mm Pin, 500 Pieces
Original price
$17.55
-
Original price
$17.55
Original price
$17.55
$17.55
-
$17.55
Current price
$17.55
SKU SW03408
Quantity: 500 Pieces
Availability:
Low stock
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
ABB: XUSD01821
Altech Corp: 2623.0 FII2208
American Electrical: 1181034 - 1182034
Eclipse: 701-027
Greenlee: 168/TL
Phoenix Contact: 3200865 3203066
Thomas Betts: F4009
Tyco AMP: 966 066-4
WAGO: 216-302
Weidmuller: 9025790000 9025770000
ZF: V3AE0004
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 22 AWG & 24 AWG |
| Color: | Turquoise |
| L1: | 12.4mm (0.49") |
| L2: | 8.0mm (0.315") |
| D: | 1.15mm (0.045") |
| D1: | 0.85mm (0.033") |
| D2: | 2.0mm (0.079") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 9A |
Cross References
Cross Reference Parts:ABB: XUSD01821
Altech Corp: 2623.0 FII2208
American Electrical: 1181034 - 1182034
Eclipse: 701-027
Greenlee: 168/TL
Phoenix Contact: 3200865 3203066
Thomas Betts: F4009
Tyco AMP: 966 066-4
WAGO: 216-302
Weidmuller: 9025790000 9025770000
ZF: V3AE0004
