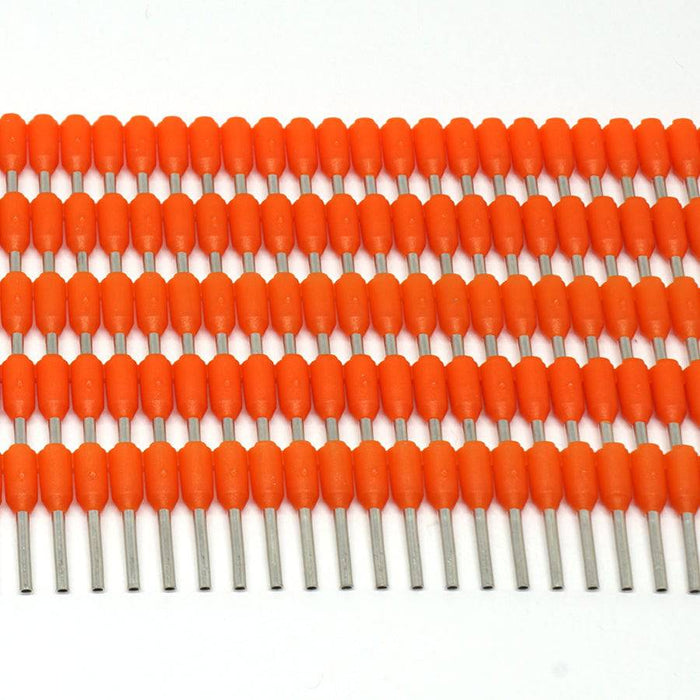

SW05008 - 22 AWG Strips of Insulated Wire Ferrules, 8mm Pin, 500 Pieces
Quantity: 500 Pieces
INSULATED WIRE FERRULES - STRIPS
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
These ferrules come in a package of ten strips of 50 pieces. They are a universal size that can be loaded into the automatic stripping tools.
DIMENSIONS & FEATURES:
| Wire Size: | 22 AWG (0.50mm2) |
| Color: | Orange |
| Pin Length: | 8mm (0.31") |
| Material: | Tin Plated Copper & Polypropylene |
| L1: | 14.0mm (0.551") |
| L2: | 8.0mm (0.315") |
| D: | 1.3mm (0.051") |
| D1: | 1.0mm (0.039") |
| D2: | 2.6mm (0.102") |
| CE Certfied: | Yes |
| RoHS Compliant: | Yes |
| Max Temperature Rating: | 221°F (105°C) |
| Max Electrical Rating: | 600 Volts |
| Max Electrical Current: | 12 AMP |
Cross References
Cross Reference Parts:
ABB: XUSG01833
ACI: 107661
Advance Controls Inc. 107661
AlliedElec 70228617
Altech Corp: 2201.0 FII2008
American Electrical: 1182050
AUTOMATION DIRECT: BM-00501
Eclipse: 701-097
Greenlee: 169/O
Phoenix Contact: 3202902 & 3201123
RS Components: 458746
SPC Technology: SCP4474 84N2008
Thomas Betts: F4000
Tyco AMP: 966 066-7
Weidmuller: 09004560000 & 09004270000 & 069070000
ZF: V3AE0006 & V3AE0074 & V30AE000006
