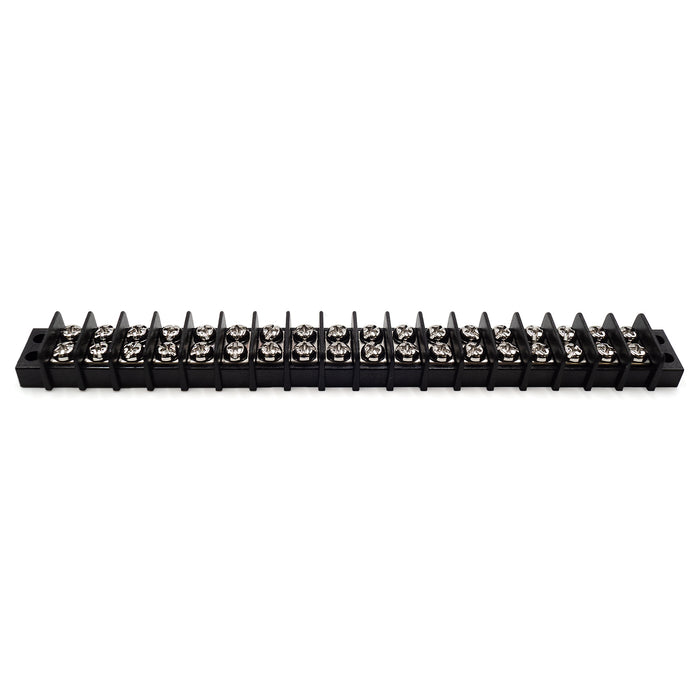

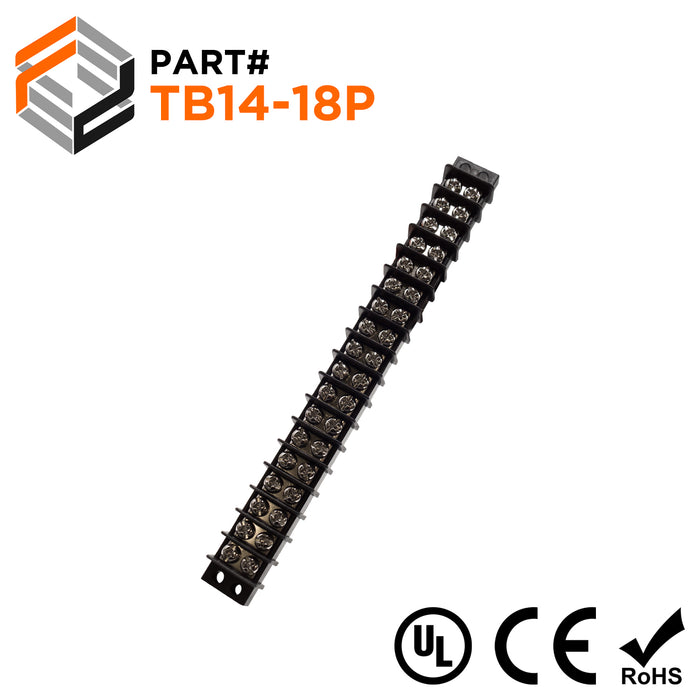

TB14-18P - Barrier Strip Terminal Block, Terminal Strip, 18 Pole, Double Row, 15A, 300V, UL Approved, 1 Piece
Original price
$8.64
-
Original price
$8.64
Original price
$8.64
$8.64
-
$8.64
Current price
$8.64
SKU TB14-18P
Quantity: 1 Piece
Availability:
in stock, ready to be shipped
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.
Dimensions & Features:
| Number of Poles: | 18 Poles |
| Pitch: | 9.5mm (0.38") |
| Terminal Spacing: | 8.0mm (0.31") |
| A: | 181.1mm (7.13") |
| B: | 188.2mm (7.41") |
| Material: | Thermoplastic UL94-V0 |
| Electrical Rating: | 300 Volts |
| Amp Rating: | 15AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
