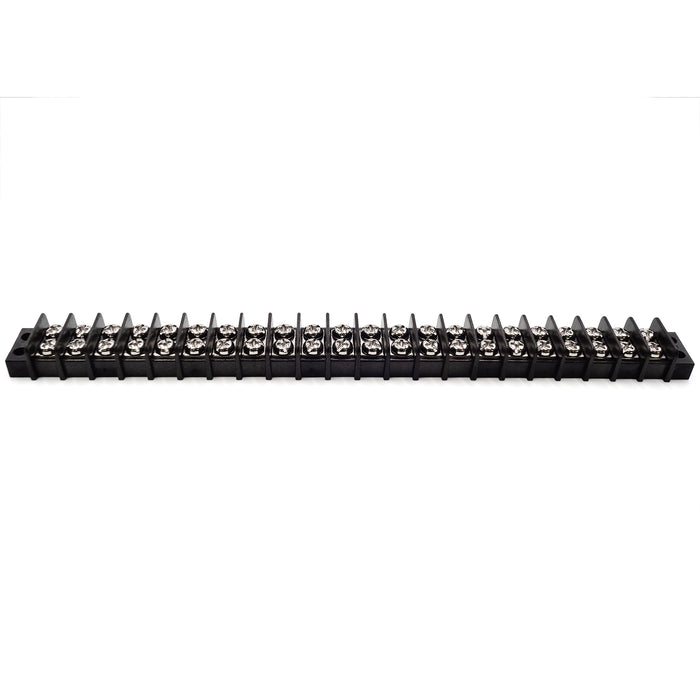

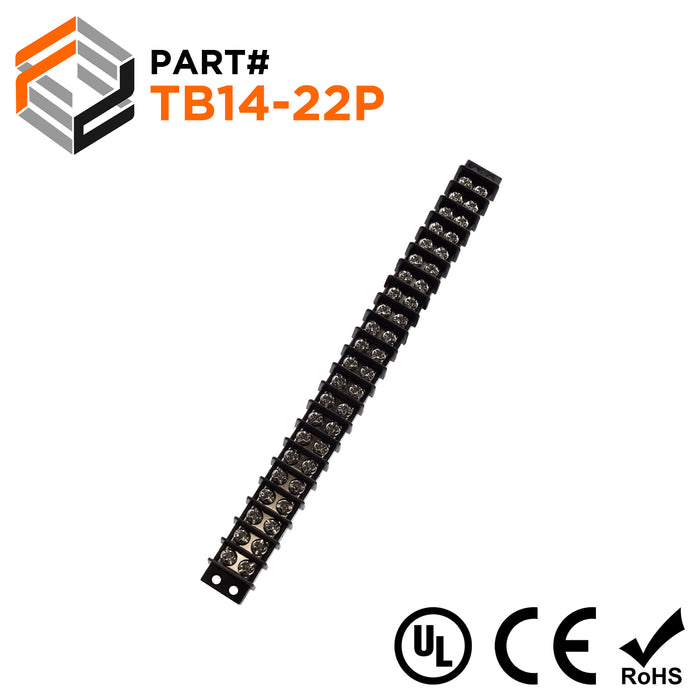

Barrier Strip Terminal Block, Terminal Strip, 22 Pole, Double Row, 15A, 300V, UL Approved - TB14-22P
Original price
$10.56
-
Original price
$10.56
Original price
$10.56
$10.56
-
$10.56
Current price
$10.56
SKU TB14-22P
Availability:
in stock, ready to be shipped
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.

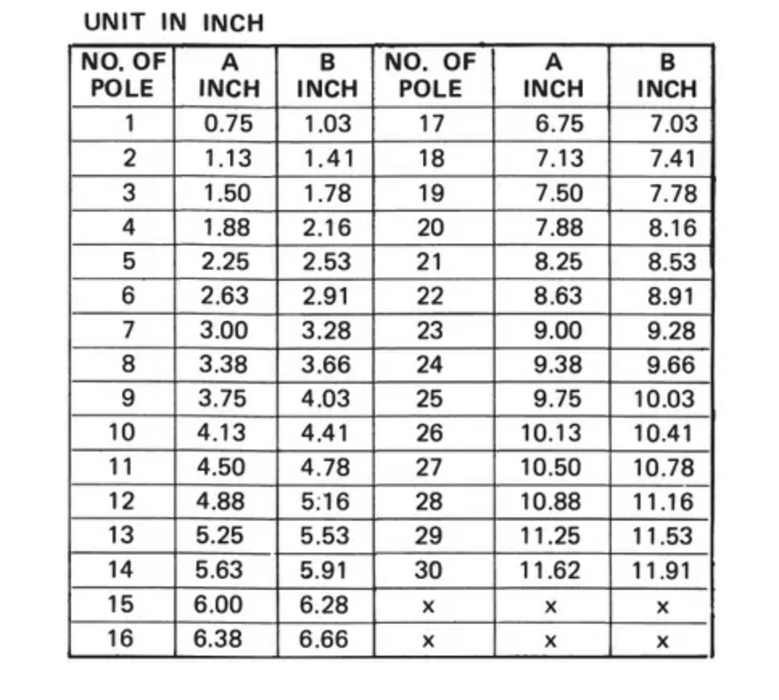

Dimensions & Features:
| Number of Poles: | 22 Poles |
| Pitch: | 9.5mm (0.38") |
| Terminal Spacing: | 8.0mm (0.31") |
| A: | 218.2mm (8.63") |
| B: | 226.3mm (8.91") |
| Material: | Thermoplastic UL94-V0 |
| Electrical Rating: | 300 Volts |
| Amp Rating: | 15AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
