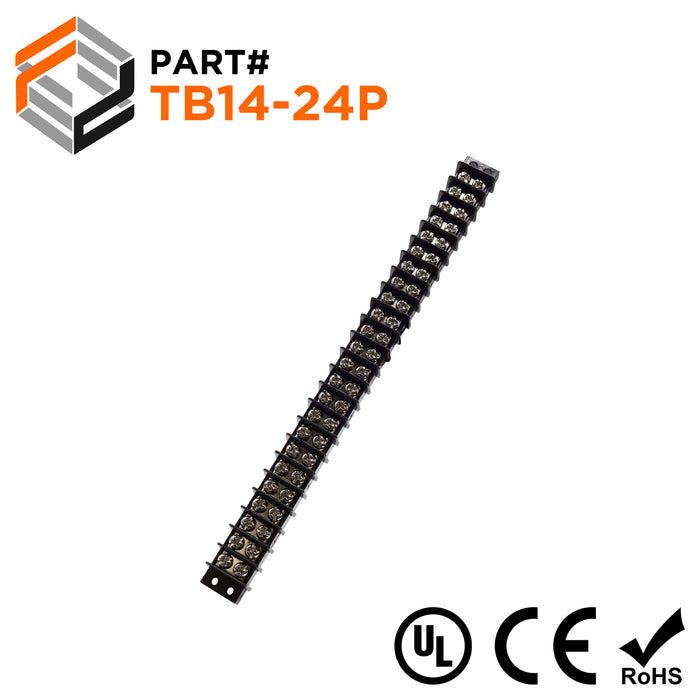

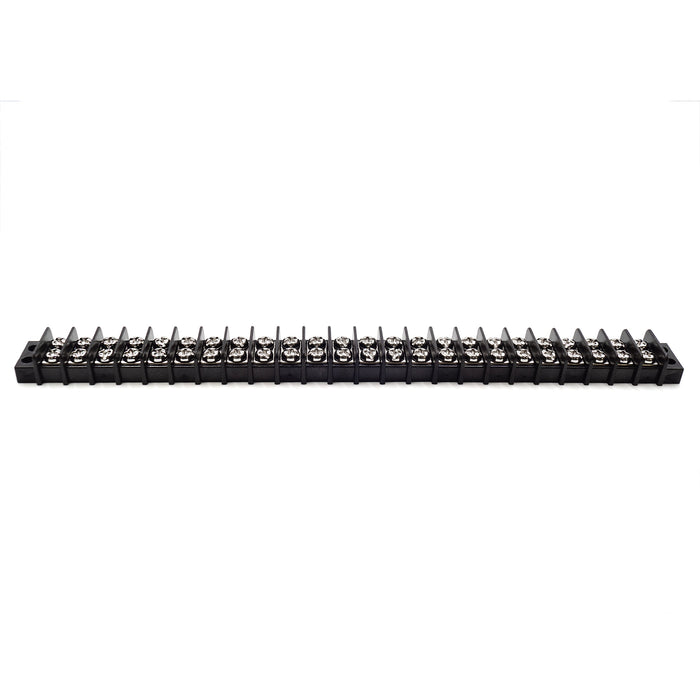

Barrier Strip Terminal Block, Terminal Strip, 24 Pole, Double Row, 15A, 300V, UL Approved - TB14-24P

Original price $11.52 - Original price $11.52
Original price
$11.52
$11.52 - $11.52
Current price $11.52
SKU TB14-24P
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece

Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.

Dimensions & Features:

Number of Poles: 24 Poles
Pitch: 9.5mm (0.38")
A: 238.3mm (9.38")
B: 245.4mm (9.66")
Material: Thermoplastic UL94-V0
Electrical Rating: 300 Volts
Amp Rating: 15AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:
