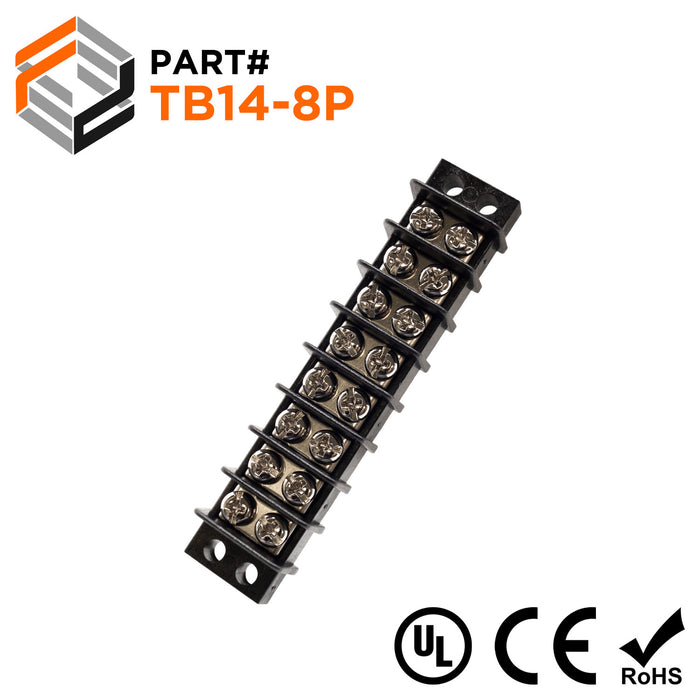

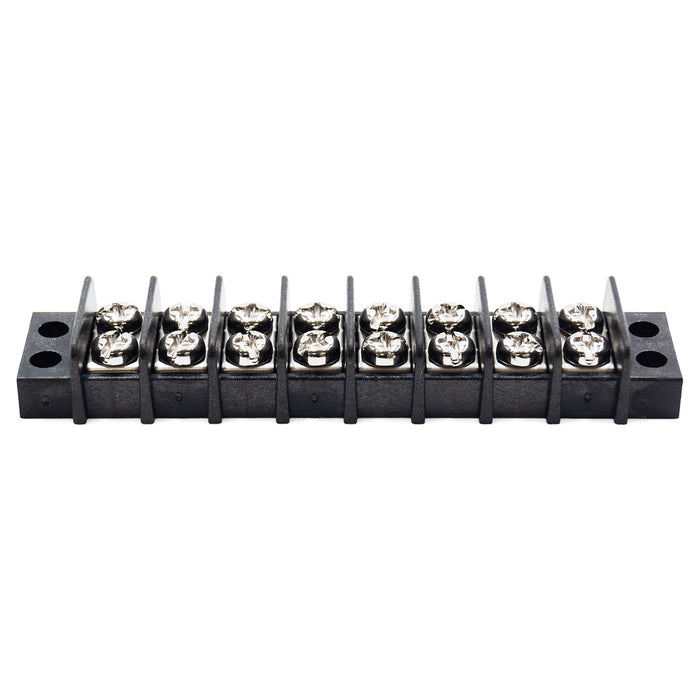

Barrier Strip Terminal Block, Terminal Strip, 8 Pole, Double Row, 15A, 300V, UL Approved - TB14-8P
Original price
$3.84
-
Original price
$3.84
Original price
$3.84
$3.84
-
$3.84
Current price
$3.84
SKU TB14-8P
Availability:
in stock, ready to be shipped
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.
Dimensions & Features:
| Number of Poles: | 8 Poles |
| Pitch: | 9.5mm (0.38") |
| Terminal Spacing: | 8.0mm (0.31") |
| A: | 85.9mm (3.38") |
| B: | 92.9mm (3.66") |
| Material: | Thermoplastic UL94-V0 |
| Electrical Rating: | 300 Volts |
| Amp Rating: | 15AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
