Barrier Strip Terminal Block, Terminal Strip, 20 Pole, Double Row, 20A, 300V, UL Approved - TB18-20P
Original price
$10.40
-
Original price
$10.40
Original price
$10.40
$10.40
-
$10.40
Current price
$10.40
SKU TB18-20P
Availability:
in stock, ready to be shipped
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.
Dimensions & Features:
| Number of Poles: | 20 Poles |
| Pitch: | 11.1mm (0.44") |
| A: | 233.4mm (9.19") |
| B: | 241.3mm (9.50") |
| Material: | Thermoplastic UL94-V0 |
| Electrical Rating: | 300 Volts |
| Amp Rating: | 20AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |

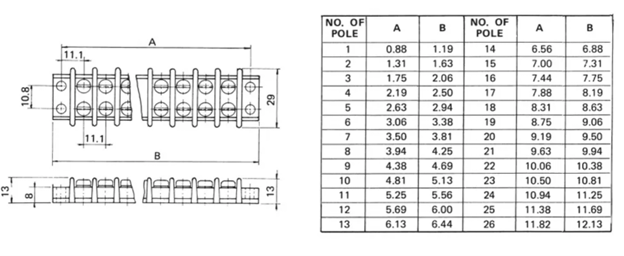

Product Drawing:
