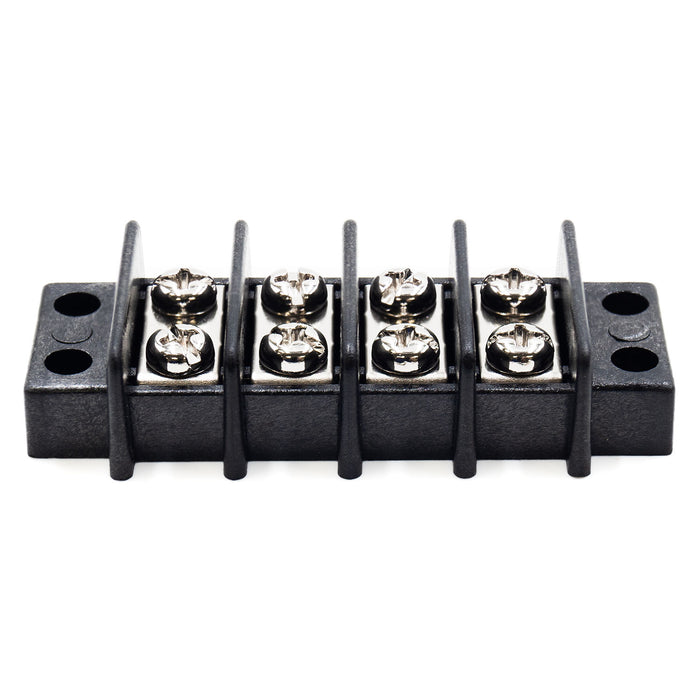

Barrier Strip Terminal Block, Terminal Strip, 4 Pole, Double Row, 20A, 300V, UL Approved - TB18-4P
Original price
$2.08
-
Original price
$2.08
Original price
$2.08
$2.08
-
$2.08
Current price
$2.08
SKU TB18-4P
Availability:
in stock, ready to be shipped
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
Number of Poles: | 4 Poles |
Pitch: | 11.1mm (0.44") |
A: | 55.6mm (2.19") |
B: | 63.5mm (2.50") |
Material: | Thermoplastic UL94-V0 |
Electrical Rating: | 300 Volts |
Amp Rating: | 20AMP |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
