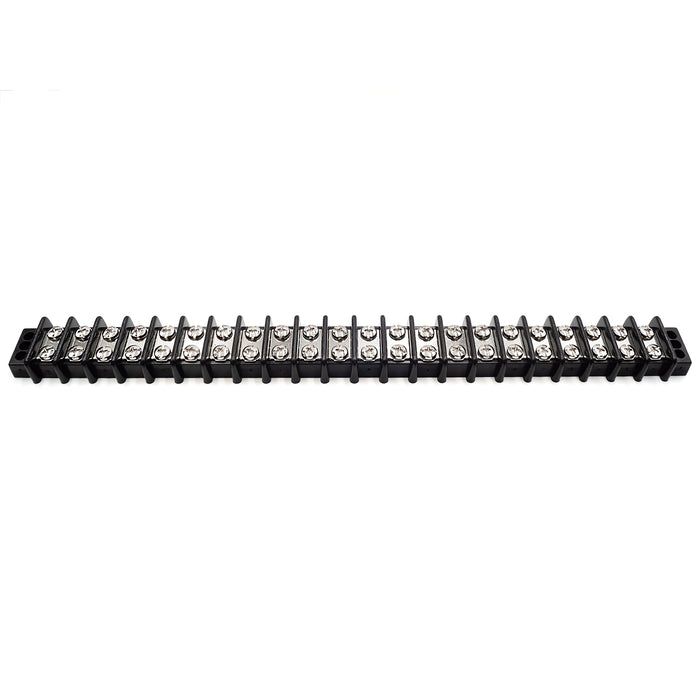

Barrier Strip Terminal Block, Terminal Strip, 22 Pole, Double Row, 30A, 300V, UL Approved - TB21-22P

Sold out
Original price $14.08 - Original price $14.08
Original price
$14.08
$14.08 - $14.08
Current price $14.08
SKU TB21-22P
Availability:
Out of stock
Piece Quantity: 1 Piece

BARRIER STRIP TERMINAL BLOCKS

A barrier strip is an interconnect consisting of connectors or screws, and a metal strip. Barrier strip style terminal blocks prevent electrical shorts between positions on the same block as well as adjacent components. This allows for both connection and termination of wires.

DIMENSIONS & FEATURES:

Number of Poles: 22 Poles
Pitch: 0.56" (14.3mm)
A: 12.94" (328.7mm)
B: 13.38" (339.9mm)
Screw: #8-32 x 5/16"L (Nickel Plated Steel)
Material: Thermoplastic UL94-V0
Electrical Rating: 300 Volts
Amp Rating: 30AMP
Cover Included: No
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

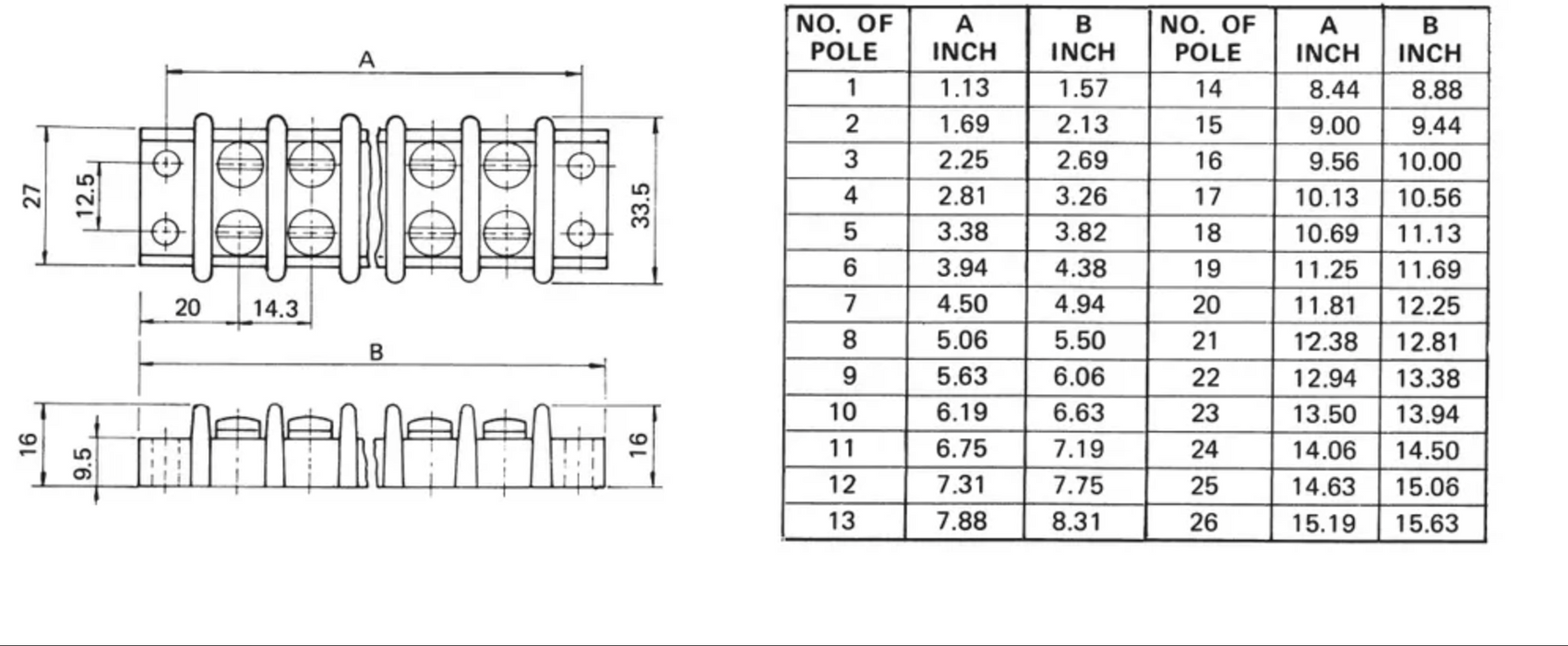

PRODUCT DRAWING:
