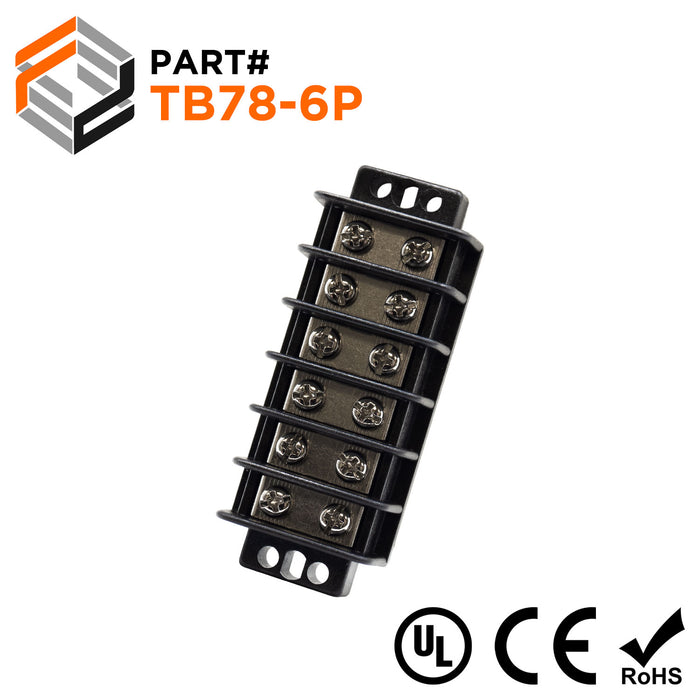

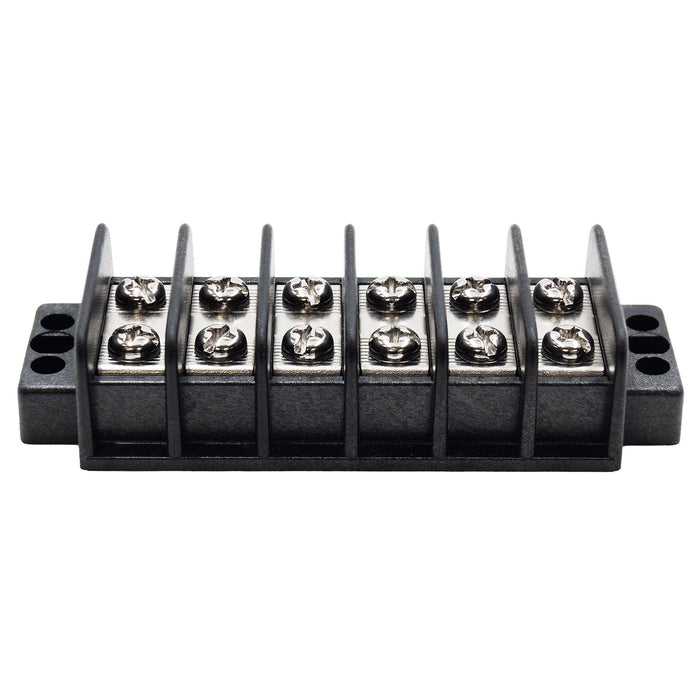

TB78-6P - 6-Pole Double Row Terminal Strip - 20A/300V

Original price $2.64 - Original price $2.64
Original price
$2.64
$2.64 - $2.64
Current price $2.64
SKU TB78-6P
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.

Dimensions & Features:

Number of Poles: 6 Poles
Pitch: 11.1mm (0.44")
A: 77.7mm (3.06")
B: 85.9mm (3.38")
Material: Thermoplastic UL94-V0
Electrical Rating: 300 Volts
Amp Rating: 20AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
