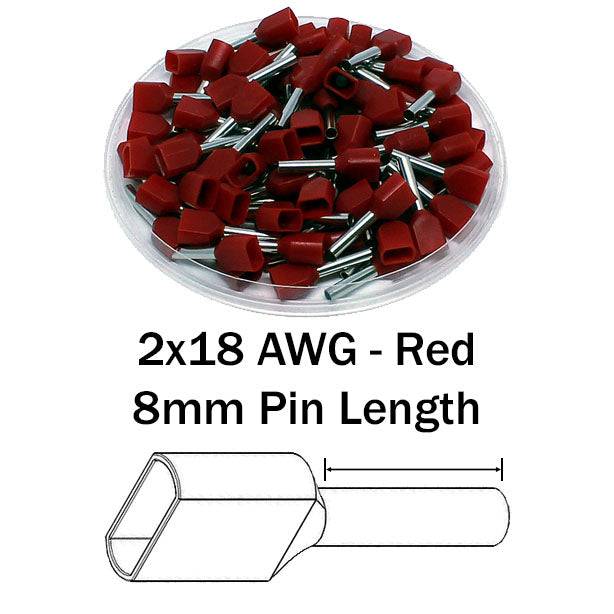

2x18 AWG (8mm Pin) Twin Wire Ferrules - Red

$11.96
SKU TD10008
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 2x18 AWG UL Approved: Yes
Color: Red CE Certified: Yes
E: 3.3mm (.13") RoHS Compliant: Yes
D1: 2.0mm (.08") Max Electrical Rating: 105°C (221°F) - 600 Volts
D2: 5.5mm (.22") Max Electrical Current: 18A
L1: 15.1mm (.594") Material: Tin Plated Copper
L2: 8.0mm (.315")

TECHNICAL DRAWING

Cross Reference Parts:

ABB: 30456103
Altech Corp: 2776 - FTD1808R
American Electrical: 1381010
AUTOMATION DIRECT: BM-00654 V30AE000609
Crimp Supply: 13A13004
Eclipse: 701-090
Elecdirect: FER2-18-8D
Greenlee: 871/8
LeGrand: 376 88
McMaster-Carr: 9703K25 & 9703K14
Panduit: FTD77-8-D
Phoenix Contact: 3200810
SPC Technology: SPC4565 84N2099
TE Connectivity: 966144-4
Thomas Betts: F8003
Tyco AMP: 966 144-4
WAGO: 216-526
Weidmuller: 9018540000
ZF: V3AE0609 V30AE000609

Click to view data sheet

How to Crimp a Wire Ferrule?
