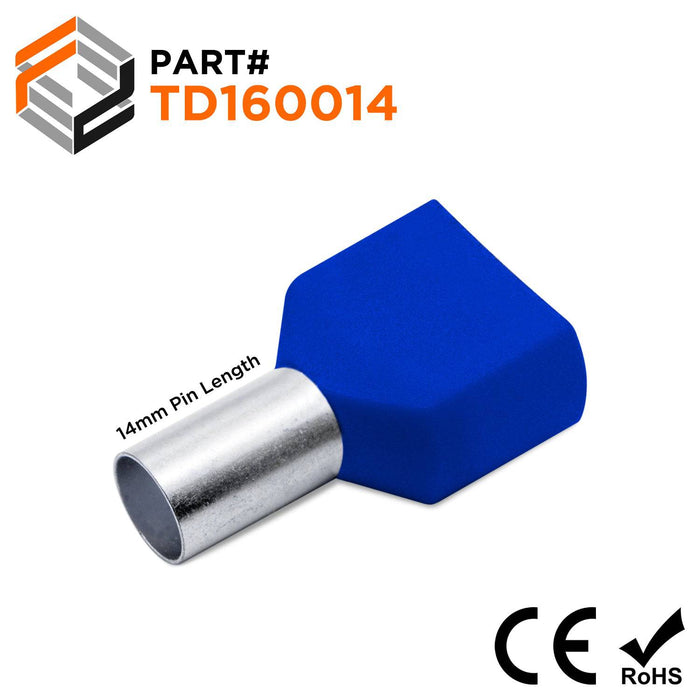

TD160014 - 2x6 AWG (14mm Pin) Twin Wire Ferrules - Blue
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 2x6 AWG |
| Color: | Blue |
| E: | 11.4mm (0.45") |
| D1: | 8.4mm (0.33") |
| D2: | 18.4mm (0.72") |
| L1: | 31.3mm (1.23") |
| L2: | 14.0mm (0.55") |
| S1: | 0.3mm (0.01") |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 95A |
| Material: | Tin-Plated Copper |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
ABB: 30457010
Altech Corp: 2802
American Electrical: 13161160
Automation Direct: BM-00663 V3AE001154
Crimp Supply: 13A13012
Eclipse: 701-114
Elecdirect: FER2-6-14L
Greenlee: 877/14
Tyco AMP: 3-966 144-1
WAGO: 216-569 51173657
Weidmuller: 9037590000
ZF: V3AE1154 V3AE001154
