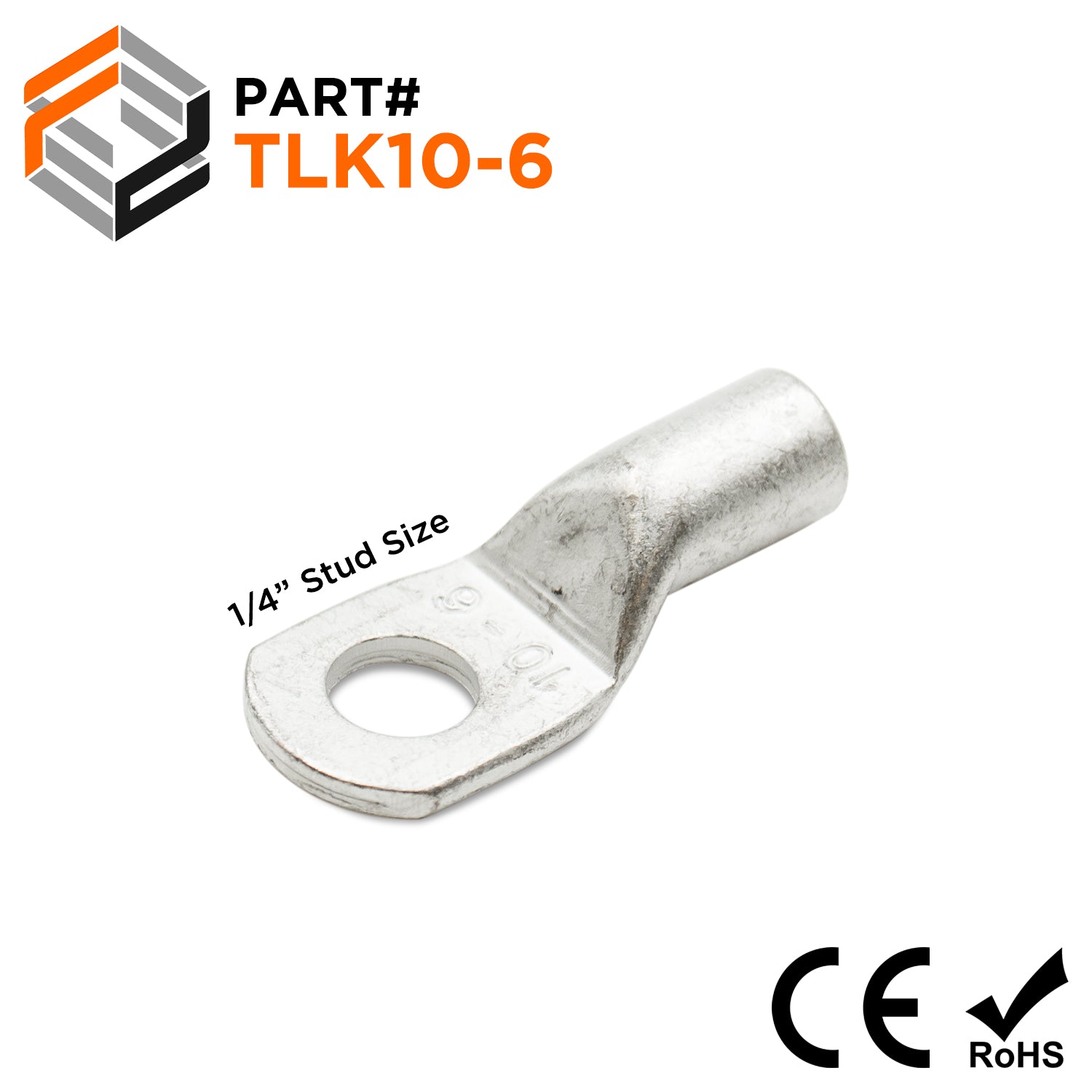

TLK10-6 - 8 AWG Copper Tube Lugs, 1/4" Stud, Tin Plated - 1/4" Stud, 25 Pieces

Name: TLK10-6 - 8 AWG Copper Tube Lugs, 1/4" Stud, Tin Plated - 1/4" Stud, 25 Pieces
Brand: Ferrules Direct
SKU: TLK10-6
Price: 12.75 USD
Availability: InStock

$12.75 - $12.75

$12.75

$12.75 - $12.75

$12.75

SKU TLK10-6

Pack Quantity: 25 Pieces

Availability:

in stock, ready to be shipped

Quantity

true

TUBULAR CABLE LUGS

Tubular lugs are heavy duty electrical conductors used to terminate a power cable so it can be securely bolted to a terminal stud, busbar, battery post, or various other applications. Each lug is tin plated to provide protection against corrosion and prevent oxidation.

COMPARE TO THESE PARTS:

/* if no javascript: get back ATC button */ body:not(.spo-loaded) [data-shopify="payment-button"], body:not(.spo-loaded).template-product form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-collection form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-index form[action="/cart/add"] [type=submit], body:not(.spo-loaded) form[action="/cart/add"] [type=submit] {opacity: 1; pointer-events: all} body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) button, body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="submit"], body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="button"], body:not(.spo-loaded) [name="checkout"], body:not(.spo-loaded) [name="goto_pp"], body:not(.spo-loaded) [name="goto_amazon_payments"] {opacity: 1; pointer-events: all}

PRODUCT INFORMATION
Wire Size	8 AWG
Stud Size	1/4" Stud
Cut Sheet (PDF)	Download file
Overall Length (L)	22.0mm (0.87")
Barrel Length (F)	10.0mm (0.39")
Outside Diameter (D)	7.0mm (0.28")
Inside Diameter (D1)	4.6mm (0.18")
Stud Hole Diameter (D2)	6.4mm (0.251")
Tab Width (W)	12.0mm (0.47")
Maximum Operating Temperature	75°C
Maximum Electrical Rating	600 Volts
Maximum Electrical Current	70 AMP
CE Certified	Yes
RoHS Compliant	Yes
REACH Compliant	Yes
Recommended Hand Tools	LY-2045E \| FDHX50 \| FDCT38
Recommended Crimping Machines	FEK50 \| FD300K
