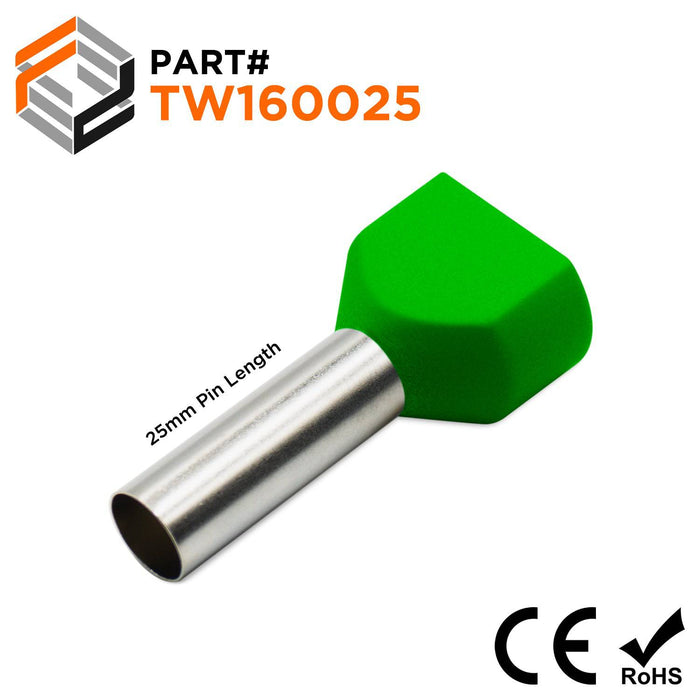

2x6 AWG (25mm Pin) Twin Wire Ferrules - Green

$34.33
SKU TW160025
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 2x6 AWG
Color: Green
E: 11.4mm (0.45")
D1: 8.4mm (0.33")
D2: 18.4mm (0.72")
L1: 42.0mm (1.65")
L2: 25.0mm (0.98")
S1: 0.3mm (0.01")
Material: Tin Plated Copper
Max Electrical Rating: 105°C (221°F) 600 Volts
Max Electrical Current: 95A
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

Altech Corp:VA30AE001155
WAGO:216-599
ZF:VA30AE001144

Documents

Click to view product spec sheet:


Videos

Watch to see how to crimp a wire ferrule!
