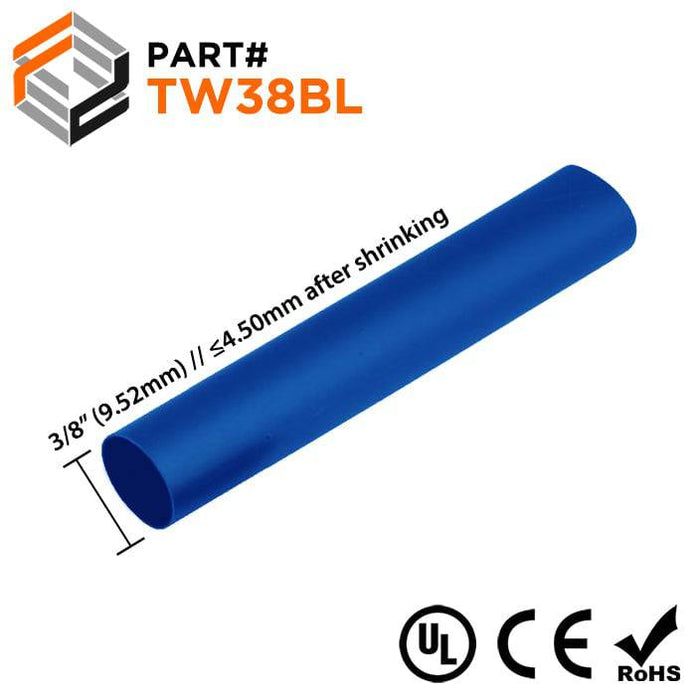

3/8" Thin Wall Heat Shrink Tubing, 2:1 Shrink Ratio, Blue, Sold Per Foot - TW38BL
Save 91%
Original price
$1.50
Original price
$1.50
-
Original price
$1.50
Original price
$1.50
Current price
$0.14
$0.14
-
$0.14
Current price
$0.14
SKU TW38BL
Availability:
in stock, ready to be shipped
2:1 THIN WALL HEAT SHRINK TUBING
Thin Wall Heat Shrink Tubing is ideal for producing quick and reliable electrical insulation. The 2 to 1 ratio of thin-wall heat shrink is the gold standard throughout many industries. Aside from wire protection and wire insulation, it can also be used for waterproofing a connection or wire marking/identification. The "2 to 1 ratio" means that the heat shrink material will shrink to half the original diameter when heated.
Our heat shrink is sold per foot and bundled to order. To keep costs low for our customers we bundle and bag the per-foot quantities. However, if you need a full spool, please see the spool options above.
- Lowest Price Guarantee ✓
- Polyolefin Material ✓
- 2:1 Shrink Ratio (shrinks to 50% of the original diameter) ✓
- High Resistance to Chemicals & Oils
- Rated for 600v ✓
- Flame Retardant (Except for Clear)
DIMENSIONS & FEATURES:
Color: | Blue |
Shrink Ratio: | 2:1 Ratio |
Size (Before Shrinking): | 0.375" | 3/8" (9.5mm) |
Size (After Shrinking): | 0.187" (4.75mm) |
Wall Thickness: | 0.026" (0.65mm) |
Material: | Flexible Polyolefin (PO) |
Shrink Temperature: | >158°F (70°C) |
Operating Temperature: | -67°F to 275°F (-55°C to 135°C) |
Voltage Rating: | 600 Volts |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
