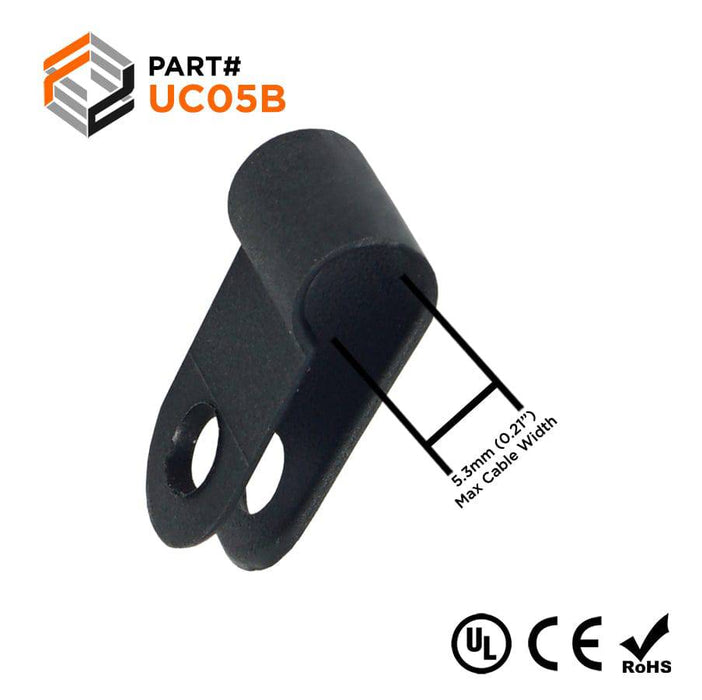

UC05B - Nylon Cable Clamps, Color: Black, Dimensions: 18.5x9.6mm, 100 Pieces
Original price
$2.86
-
Original price
$2.86
Original price
$2.86
$2.86
-
$2.86
Current price
$2.86
SKU UC05B
Quantity: 100 Pieces
Availability:
in stock, ready to be shipped
Strap-type cable clamps are designed to hold cables, tubes, and other components in appliances and electronics. To apply, just clamp down on loose cables and screw into the chassis.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Size: | 18.5 x 9.6mm (0.73 x 0.38") |
| Color: | Black |
| A: | 4.8mm (0.19") |
| B: | 9.2mm (0.36") |
| C: | 9.6mm (0.38") |
| D: | 5.3mm (0.21") |
| E: | 18.5mm (0.73") |
| F: | 1.05mm (0.04") |
| Bundle Diameter: | 5.0mm (3/16") |
| Material: | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature: | -40°F to 185°F (-40°C to 85°F) |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
