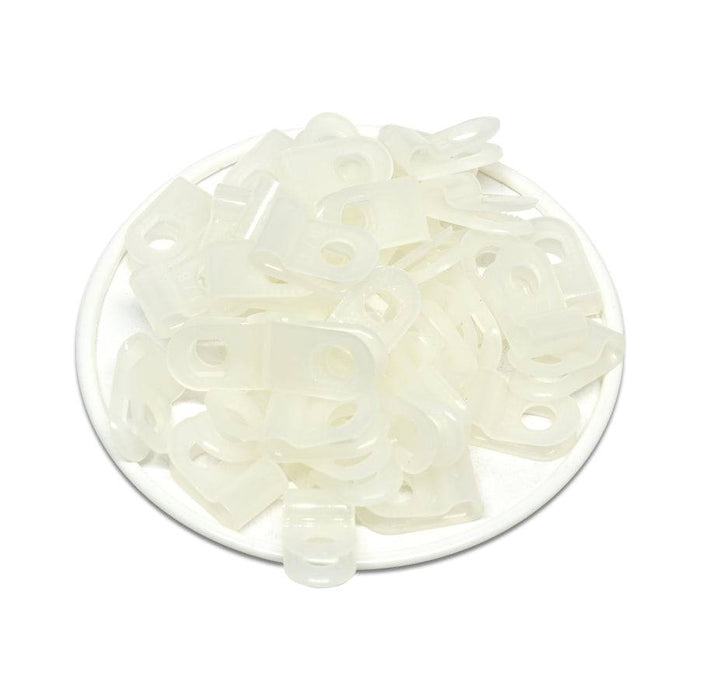

UC0N - Strap Type Cable Clamps - 17 x 9.6mm (0.66 x 0.38") - Natural

$2.64
SKU UC0N
Pack Quantity
Strap-type cable clamps are designed to hold cables, tubes, and other components in appliances and electronics. To apply, just clamp down on loose cables and screw into the chassis.

Dimensions & Features:

Size: 17 x 9.6mm (0.66 x 0.38")
Color: Natural
A: 4.8mm (0.19")
B: 8.0mm (0.31")
C: 9.6mm (0.38")

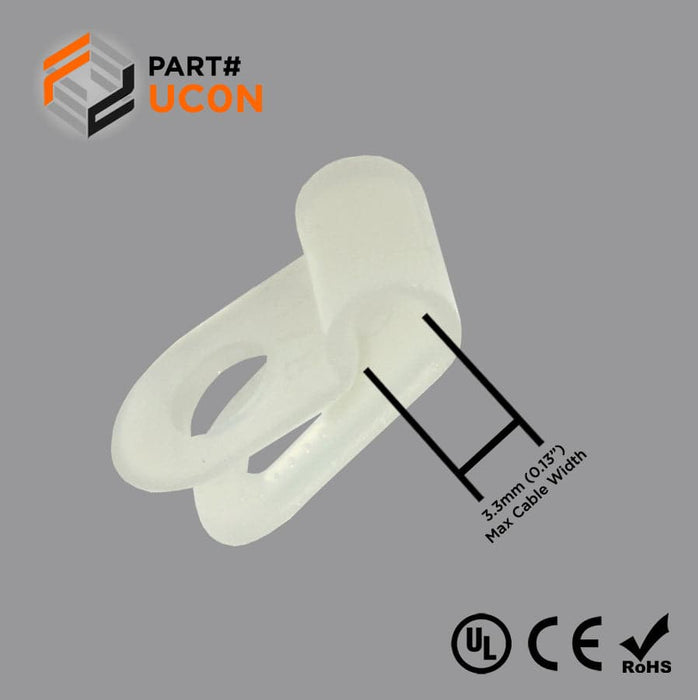

D: 3.3mm (0.13")
E: 16.9mm (0.66")
F: 1.2mm (0.05")
Bundle Diameter: 3.1mm (1/8")
Material: UL Approved 94UV-2 Nylon 6/6
Service Temperature: -40°F to 185°F (-40°C to 85°F)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
