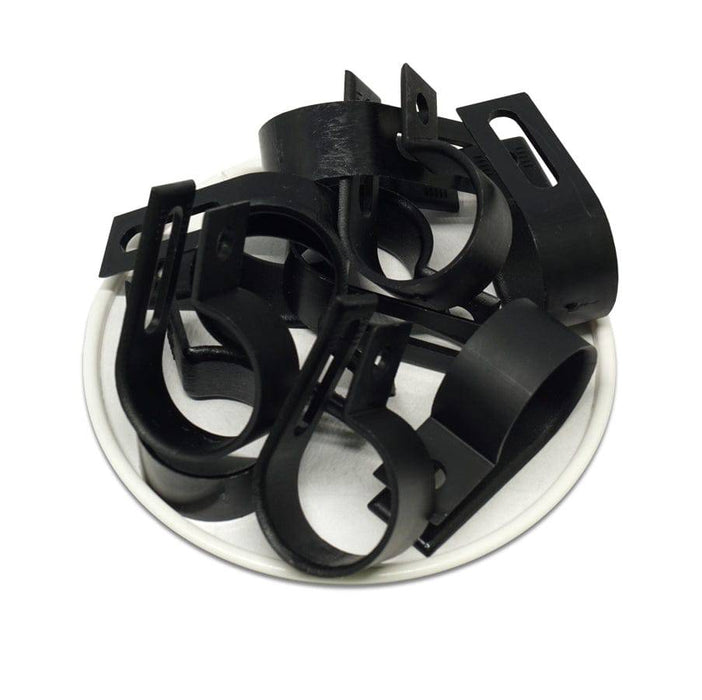

UC5B - Strap Type Cable Clamps - 37.3 x 11.8mm (1.47 x 0.46") - Black
Original price
$7.88
-
Original price
$7.88
Original price
$7.88
$7.88
-
$7.88
Current price
$7.88
SKU UC5B
Availability:
in stock, ready to be shipped
Strap-type cable clamps are designed to hold cables, tubes, and other components in appliances and electronics. To apply, just clamp down on loose cables and screw into the chassis.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
Size: |
37.3 x 11.8mm (1.47 x 0.46") |
Color: | Black |
A: | 4.8mm (0.19") |
B: | 18mm (0.71") |
C: | 11.8mm (0.46") |
D: | 19.9mm (0.78") |
E: | 37.3mm (1.47") |
F: | 1.40mm (0.055") |
Bundle Diameter: | 19.4mm (3/4") |
Material: | UL Approved 94UV-2 Nylon 6/6 |
Service Temperature: | -40°F to 185°F (-40°C to 85°F) |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
