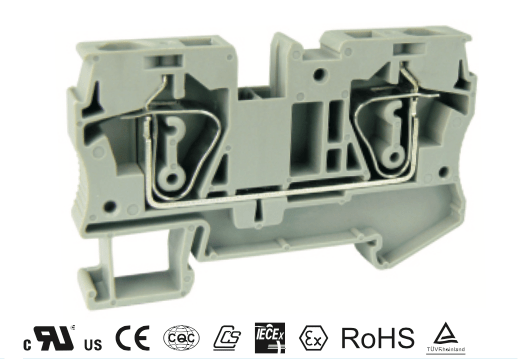

UJ5-6 - 22 to 8 AWG, Spring Cage Terminal Block, 800v, UL Approved, Gray

Original price $1.44 - Original price $1.44
Original price
$1.44
$1.44 - $1.44
Current price $1.44
SKU UJ5-6
Availability:
in stock, ready to be shipped

SPRING CAGE TERMINAL BLOCK

Introducing the UJ5-6, the UL approved terminal block with spring cage technology for secure and efficient wire connections. It's perfect for a variety of applications and can accommodate 22 to 8 AWG wires.

TECHNICAL DATA:

Wire Range (Stranded): 22 to 10 AWG (0.50mm to 6.00mm)
Wire Range (Solid): 22 to 8 AWG (0.50mm to 10.00mm)
Stripping Length: 0.47" (12mm)
Connection Method: Spring-Cage Connection
Operating Temperature: -40°F to +221°F (-40°C to +105°C)
Ambient Temperature: -77°F to +140°F (-25°C to +60°C)
Relative Humidity: 30% to 90%
Connection Standard: IEC 60947-7-1



DIMENSIONS:

Width: 2.74" (69.5mm)
Thickness: 0.32" (8.2mm)
Height: 1.66" (42.2mm)



PRODUCT PARAMETERS:

Number of Connections: 2
Rated Cross Section (mm): 10
Color: Gray
Insulation Material: PA (Nylon)
Flame Retardant Grade: V0 (UL94)
Rated Voltage (V): 800v
Rated Current (A): 52a
Temperature of Insulation Material: -40°F to +257°F (-40°C to +125°C)
Wire Feed: Above the terminal


COMPATIBLE ACCESSORIES:

Items with links are currently available for purchase. E-mail us today for availability of non-stock items.

Mounting Rail: TH35-7.5 & TH35-15
End Cover: UJ5-6G
Partition Plate: UJ5-6FG
Jumpers (2 Position): UFBS2-8
Jumpers (3 Position): UFBS3-8
Jumpers (4 Position) UFBS4-8
Jumpers (5 Position): UFBS5-8
Jumpers (10 Position): UFBS10-8
Center Marker Strip (Blank): UZB8-10(Blank)
Center Marker Strip (Horizontal): UZB8-10(Horizontal)
Center Marker Strip (Vertical): UZB8-10(Vertical)
Side Marker Strip (Blank): UBFM8(Blank)
Side Marker Strip (Horizontal): UBFM8(Horizontal)
Side Marker Strip (Vertical): UBFM8(Vertical)
Screwdriver: YB0.6x4.0


MOUNTING RAIL TYPE:

DOCUMENT FILE:





COMPARE TO THESE PARTS:
