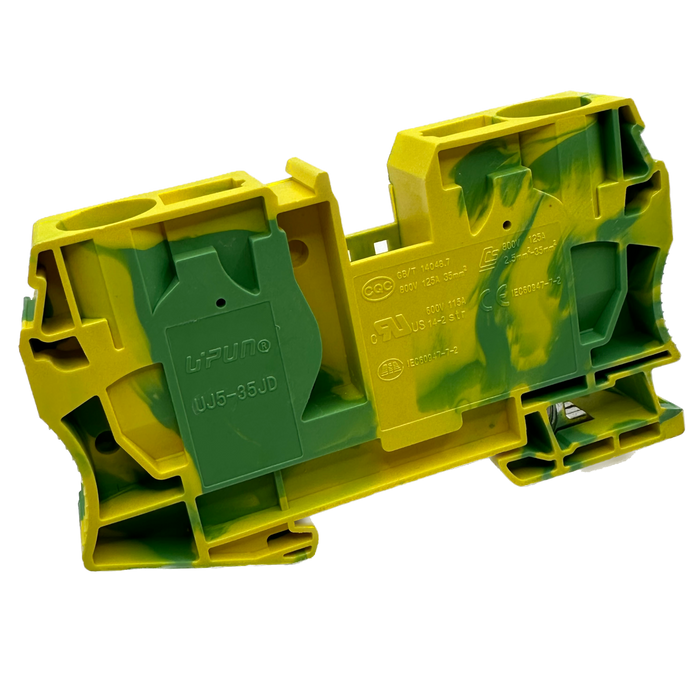

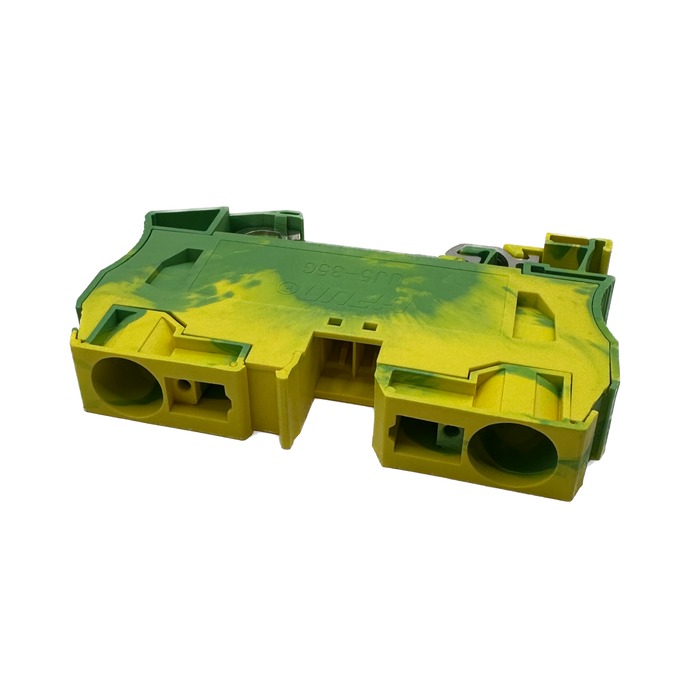

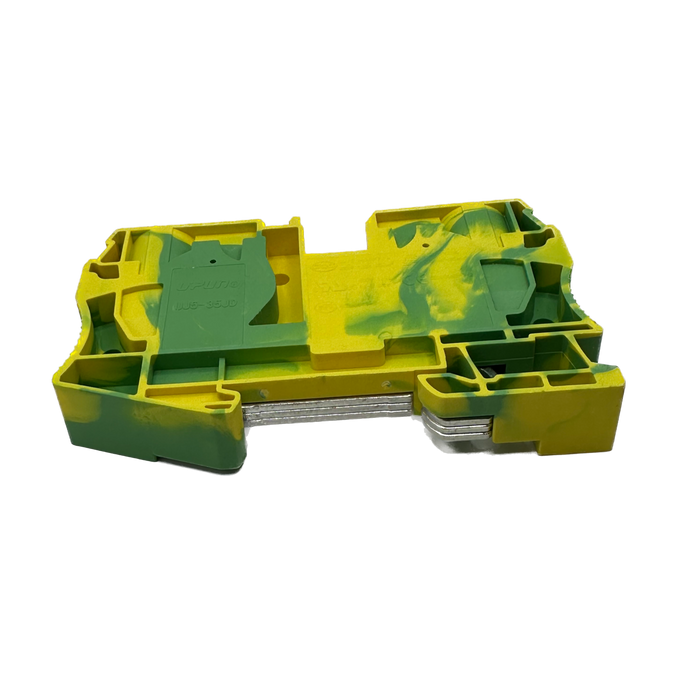

UJ5-35JD - 14 to 2 AWG Spring Cage Terminal Block, Ground, UL Approved, 1 Piece
Original price
$27.90
-
Original price
$27.90
Original price
$27.90
$27.90
-
$27.90
Current price
$27.90
SKU UJ5-35JD
Availability:
in stock, ready to be shipped
SPRING CAGE TERMINAL BLOCK
Introducing the UJ5-35JD, the UL approved terminal block with spring cage technology for secure and efficient wire connections. It's perfect for a variety of applications and can accommodate 14 to 2 AWG wires.
TECHNICAL DATA:
| Wire Range (Stranded): | 14 to 2 AWG (2.5mm to 35mm) |
| Wire Range (Solid): | 14 to 2 AWG (2.5mm to 35mm) |
| Stripping Length: | 0.98" (25mm) |
| Connection Method: | Spring-Cage Connection |
| Operating Temperature: | -40°F to +221°F (-40°C to +105°C) |
| Ambient Temperature: | -77°F to +140°F (-25°C to +60°C) |
| Relative Humidity: | 30% to 90% |
| Connection Standard: | IEC 60947-7-1 |
DIMENSIONS:
| Width: | 3.94" (100mm) |
| Thickness: | 0.64" (16.2mm) |
| Height: | 2.31" (58.6mm) |
PRODUCT PARAMETERS:
| Number of Connections: | 2 |
| Rated Cross Section (mm): | 35 |
| Color: | Yellow/Green |
| Insulation Material: | PA (Nylon) |
| Flame Retardant Grade: | V0 (UL94) |
| Rated Voltage (V): | N/A |
| Rated Current (A): | N/A |
| Temperature of Insulation Material: | -40°F to +257°F (-40°C to +125°C) |
| Wire Feed: | Above the terminal |
MOUNTING RAIL TYPE:
DOCUMENT FILE:
COMPATIBLE ACCESSORIES:
Items with links are currently available for purchase. E-mail us today for availability of non-stock items.
| Mounting Rail: | TH35-7.5 & TH35-15 |
| Marker Strip (Blank): | UZB10-10(Blank) |
| Marker Strip (Horizontal): | UZB10-10(Horizontal) |
| Marker Strip (Vertical): | UZB10-10(Verrical) |
| Side Marker Strip (Blank): | UBFM8(Blank) |
| Side Marker Strip (Horizontal): | UBFM8(Horizontal) |
| Side Marker Strip (Verical): | UBFM8(Vertical) |
| Screwdriver: | YB1.0X5.0 |
