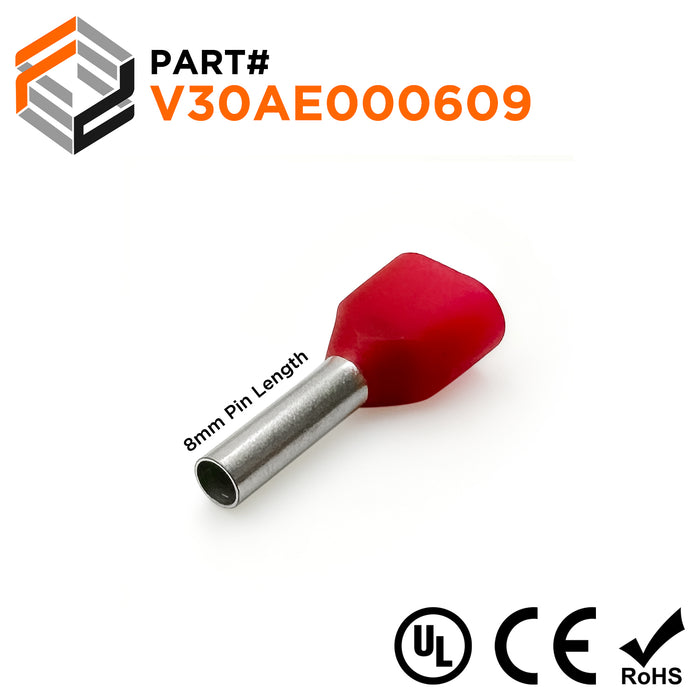

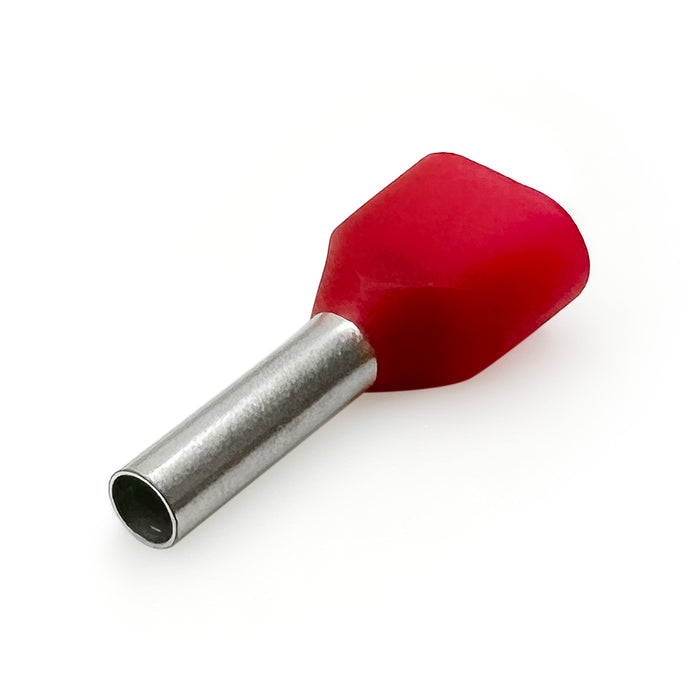

Z+F V30AE000609 - 2x18 AWG Twin Wire Ferrules, 8mm, Red - 500 Pieces
Original price
$35.00
-
Original price
$35.00
Original price
$35.00
$35.00
-
$35.00
Current price
$35.00
SKU V30AE000609
Quantity: 500 Pieces
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 2x18 AWG |
| Color: | Red |
| E: | 3.3mm (0.13") |
| D1: | 2.0mm (0.08") |
| D2: | 5.5mm (0.22") |
| L1: | 15.1mm (0.59") |
| L2: | 8.0mm (0.31") |
| S1: | 0.3mm (0.01") |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 18A |
| Material: | Tin-Plated Copper |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
