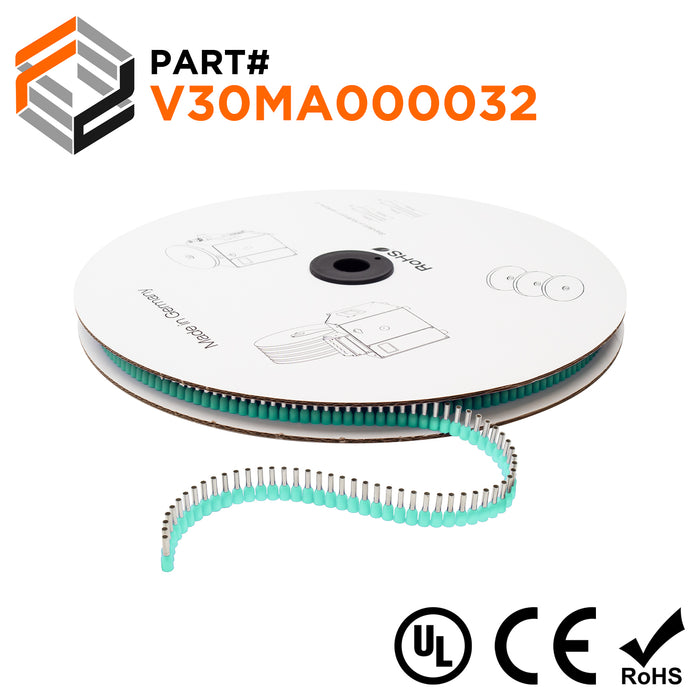

Z+F V30MA000032 - 24 & 22 AWG Insulated Wire Ferrules, 8mm Pin, Turquoise, Reel of 5,000
Quantity: 5,000 Pieces
INSULATED WIRE FERRULES - REEL/SPOOL
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

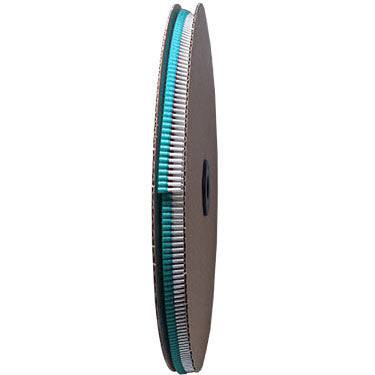

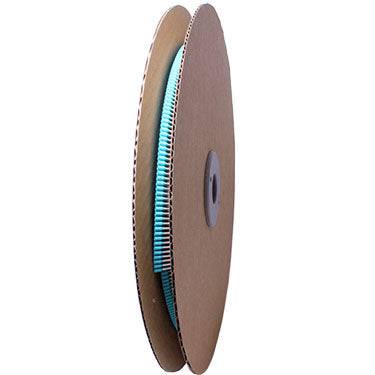

These ferrules come in a continuous reel of 5,000 pieces. The reel is made of corrugated cardboard with a plastic spindle that is universally accepted on a wide variety automatic crimping machines.
DIMENSIONS & FEATURES:
| Wire Size: | 24 AWG & 22 AWG (0.34mm2) |
| Color: | Turquoise |
| Pin Length: | 8mm (0.31") |
| Material: | Tin Plated Copper & Polypropylene |
| L1: | 12.4mm (0.49") |
| L2: | 8.0mm (0.315") |
| D: | 1.15mm (0.045") |
| D1: | 0.85mm (0.033") |
| D2: | 2.0mm (0.079") |
| CE Certfied: | Yes |
| RoHS Compliant: | Yes |
| Max Temperature Rating: | 221°F (105°C) |
| Max Electrical Rating: | 600 Volts |
| Max Electrical Current: | 9 AMP |
Cross References
Cross Reference Parts:
ABB: XUSD01821
Altech Corp: 2623.0 FII2208
American Electrical: 1181034 - 1182034
Eclipse: 701-027
Greenlee: 168/TL
Phoenix Contact: 3200865 3203066
Thomas Betts: F4009
Tyco AMP: 966 066-4
WAGO: 216-302
Weidmuller: 9025790000 9025770000
ZF: V3AE0004
