Z+F V30MA000039 - 18 & 17 AWG Insulated Wire Ferrules, 8mm Pin, Yellow, 5,000 pieces Reel/Spool
Sold out
Original price
$414.00
Original price
$414.00
-
Original price
$414.00
Original price
$414.00
Current price
$201.00
$201.00
-
$201.00
Current price
$201.00
SKU V30MA000039
Quantity: 5,000 Pieces
Availability:
Out of stock
INSULATED WIRE FERRULES - REEL/SPOOL
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
These ferrules come in a continuous reel of 5,000 pieces. The reel is made of corrugated cardboard with a plastic spindle that is universally accepted on a wide variety automatic crimping machines.
DIMENSIONS & FEATURES:
| Wire Size: | 18 AWG |
| Color: | Yellow |
| Pin Length: | 8mm (0.31") |
| Material: | Tin Plated Copper & Polypropylene |
| L1: | 14.0mm (0.55") |
| L2: | 8.0mm (0.31") |
| D: | 1.7mm (0.06") |
| D1: | 1.4mm (0.05") |
| D2: | 2.8mm (0.11") |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Temperature Rating: | 221°F (105°C) |
| Max Electrical Rating: | 600 Volts |
| Max Electrical Current: | 18 AMP |

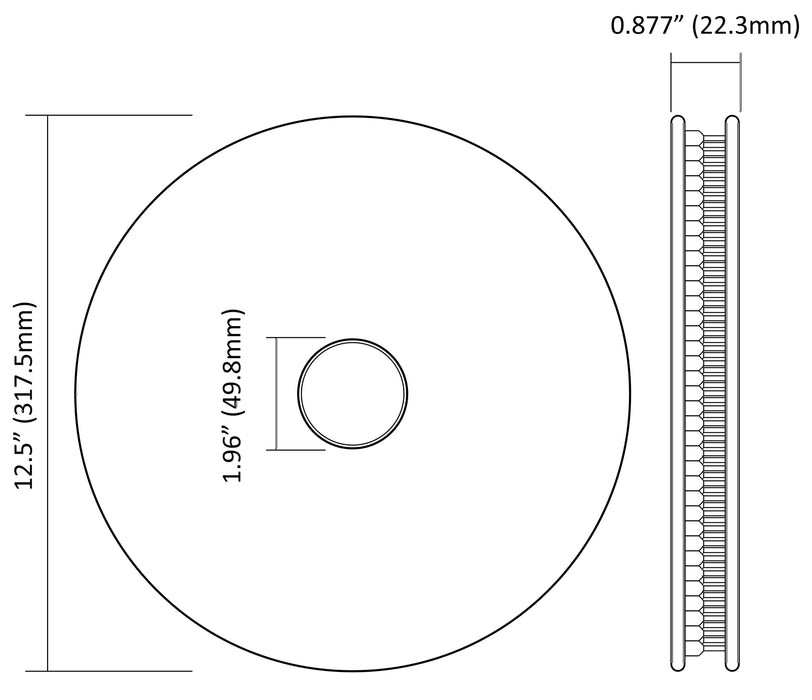

DRAWING:
Click to view product spec sheet:
