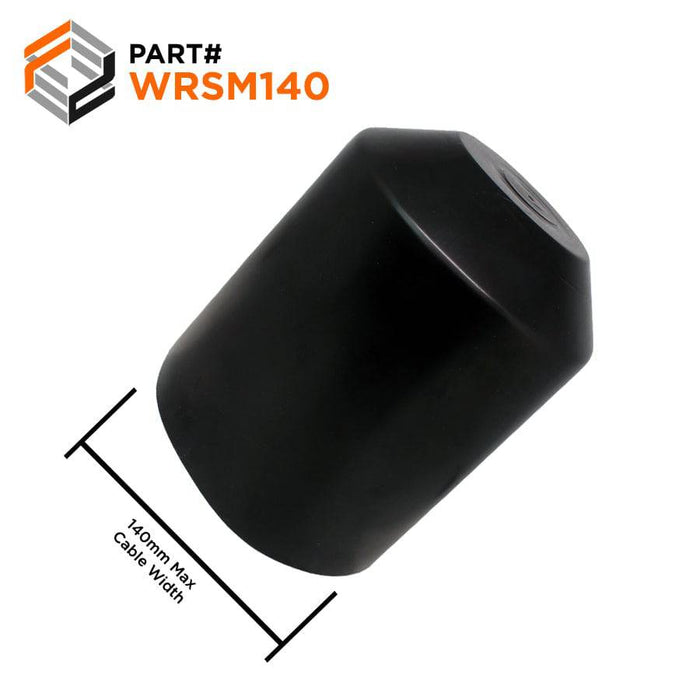

WRSM140 - Heat Shrinkable End Cap - 140/63mm (5.50/2.48")
Original price
$9.12
-
Original price
$9.12
Original price
$9.12
$9.12
-
$9.12
Current price
$9.12
SKU WRSM140
Availability:
in stock, ready to be shipped
Heat shrinkable end caps are used for a variety of applications such as sealing off exposed wire ends and providing resistance to chemical corrosion and abrasion. They are lined with hot melt adhesive that offers feed-thru terminal insulation and complete sealing/waterproofing.
Dimensions & Features:
| Size: | 140/63mm (5.51"/2.4") |
| Length (L): | 182.9mm (7.2") |
| Diameter (D) (As Supplied): | 140mm (5.50") |
| Diameter (W) (After Shrink): | 63mm (2.4") |
| Material: | Flexible Polyolefin |
| Operating Temperature: | -49oF to 257oF (-45oC to 125oC) |
| Non Corrosive: | Yes |
Product Drawing:
