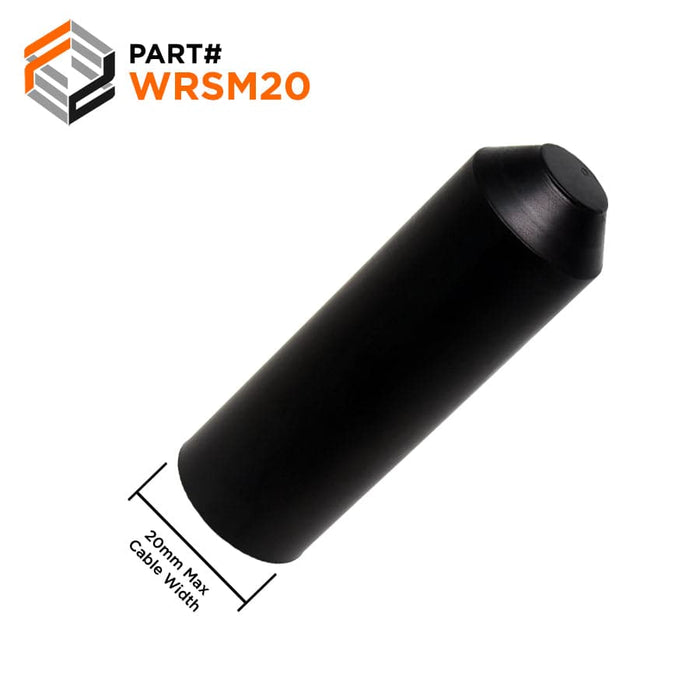

Heat Shrink Cable End Cap, Shrink From 13/16" to 1/4", Adhesive Lined, 1 Piece - WRSM20
Original price
$1.88
-
Original price
$1.88
Original price
$1.88
$1.88
-
$1.88
Current price
$1.88
SKU WRSM20
Availability:
in stock, ready to be shipped
HEAT SHRINKABLE END CAPS
The Heat Shrinkable End Cap, WRSM20, offers superior electrical insulation, tight sealing, and resistance to chemical corrosion and abrasion. Its hot melt adhesive lining ensures waterproofing for cabling storage, installation, and transportation. Shrinkable from 13/16" to 1/4", it's a reliable choice for cabling needs.
DIMENSIONS & FEATURES:
| Inner Diameter Size "W" (Before): | 0.79" (20mm) |
| Inner Diameter Size "B" (After Shrinking): | 0.24" (6mm) |
| Length "L": | 2.17" (55mm) |
| Material: | Flexible Polyolefin |
| Tensile Strength: | >13MPa |
| Ultimate Elongation: | >300% |
| Tensile Strength (After Thermal Aging): | >10MPa |
| Ultimate Elongation (After Thermal Aging): | >250% |
| Dielectric Strength: | >15kV/mm |
| Volume Resistance: | ≥1013Ωm |
| Water Absorption: | <1% |
| Operating Temperature: | -131oF to 257oF (-55oC to 125oC) |
| Minimum Shrink Temperature: | 212oF (100oC) |
| Waterproof: | Yes |
| Chemical Resistant: | Yes |
| Non Corrosive: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
