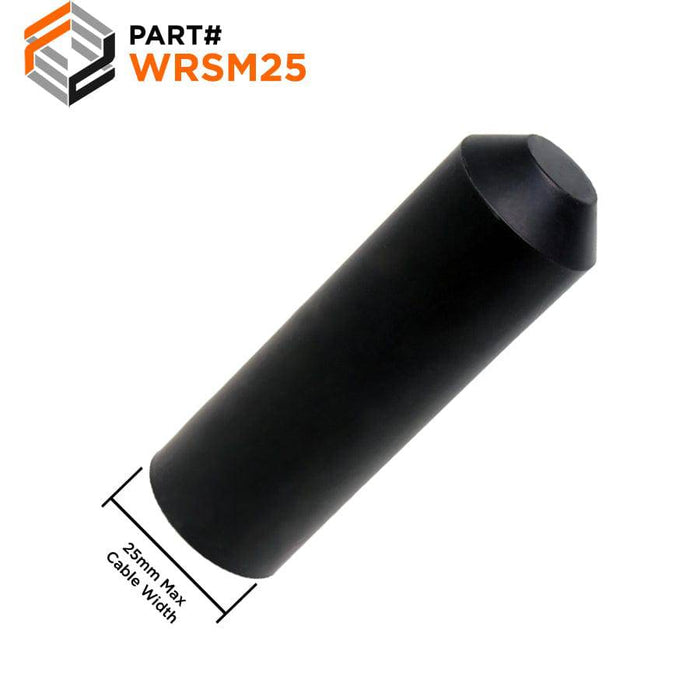

WRSM25 - Heat Shrinkable End Cap - 25/11mm (1.0/.40")
Original price
$1.96
-
Original price
$1.96
Original price
$1.96
$1.96
-
$1.96
Current price
$1.96
SKU WRSM25
Availability:
in stock, ready to be shipped
Heat shrinkable end caps are used for a variety of applications such as sealing off exposed wire ends and providing resistance to chemical corrosion and abrasion. They are lined with hot melt adhesive that offers feed-thru terminal insulation and complete sealing/waterproofing.
Dimensions & Features:
| Size: | 25/11mm (1.0"/0.40") |
| Length (L): | 83mm (3.27") |
| Diameter (D) (As Supplied): | 25mm (1.0") |
| Diameter (W) (After Shrink): | 11mm (0.40") |
| Material: | Flexible Polyolefin |
| Operating Temperature: | -49oF to 257oF (-45oC to 125oC) |
| Non Corrosive: | Yes |
Product Drawing:
