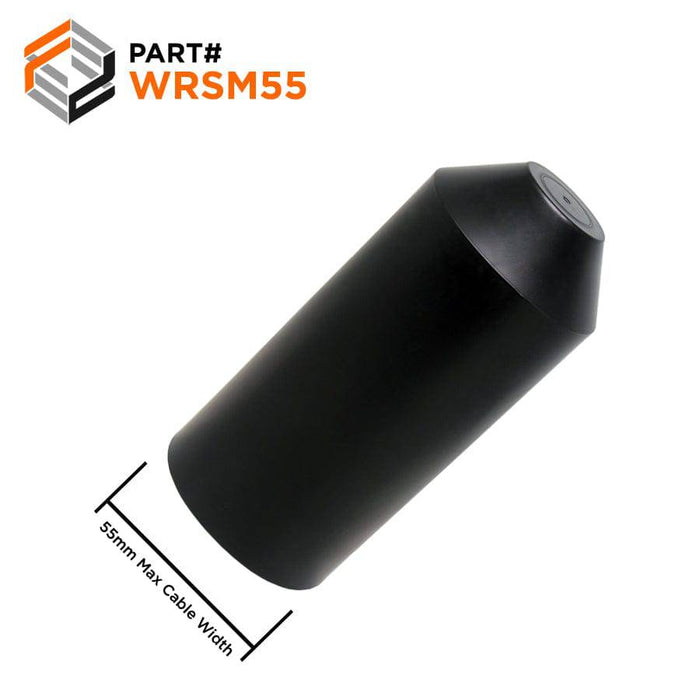

WRSM55 - Heat Shrinkable End Cap - 55/26mm (2.16/1.02")
Original price
$2.64
-
Original price
$2.64
Original price
$2.64
$2.64
-
$2.64
Current price
$2.64
SKU WRSM55
Availability:
in stock, ready to be shipped
Heat shrinkable end caps are used for a variety of applications such as sealing off exposed wire ends and providing resistance to chemical corrosion and abrasion. They are lined with hot melt adhesive that offers feed-thru terminal insulation and complete sealing/waterproofing.
Dimensions & Features:
| Size: | 55/26mm (2.16"/1.02") |
| Length (L): | 126mm (4.99") |
| Diameter (D) (As Supplied): | 55mm (2.16") |
| Diameter (W) (After Shrink): | 26mm (1.02") |
| Material: | Flexible Polyolefin |
| Operating Temperature: | -49oF to 257oF (-45oC to 125oC) |
| Non Corrosive: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
