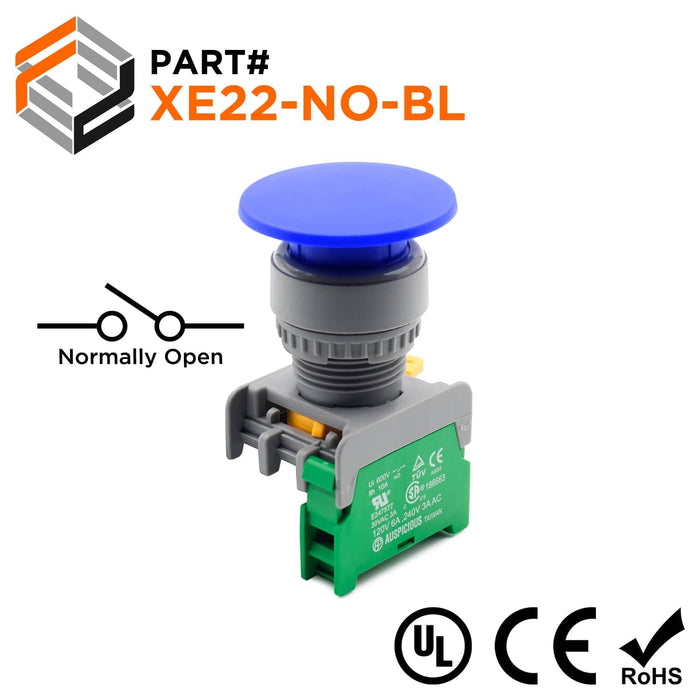

22mm Push Button - (NO) - 40mm Mushroom Head - Blue - XE22-NO-BL

Original price $3.90 - Original price $3.90
Original price
$3.90
$3.90 - $3.90
Current price $3.90
SKU XE22-NO-BL
Availability:
in stock, ready to be shipped
Quantity:: 1 Piece
A push button switch consists of a simple electric switch mechanism which controls some aspect of a machine or process.

Dimensions & Features:

Type: 40mm Mushroom Head
Mounting Hole Size: 22mm
Color: Blue
Type of Contact: (NO) Normally Open
Number of Contacts: 1
Voltage Rating: 110V, 6AMP - 120V, 6AMP - 240v, 3AMP
Short Circuit Current: 1000A
Rated Insulation Voltage (Ui): 600v
Thermal Current (Ith): 10A, 50/60Hz
Mechanical Life (Block): 1 Million Operations
Mechanical Life (Actuator): 1 Million Operations
Enclosure Material: Reinforced Thermoplastic
Contact Material: Silver
Contact Resistance: 50mΩ max (initial)
Protection Degree: IP65
Ambient Temperature: -4°F to 140°F [-20°C to 60°C]
Operating Temperature: -25°C to 70°C
Approvals: UL, CSA, CE, TUV
UL File #: E247577
CSA #: 1689803
RoHS Compliant: Yes

Cross References

Cross Reference Parts:
None
