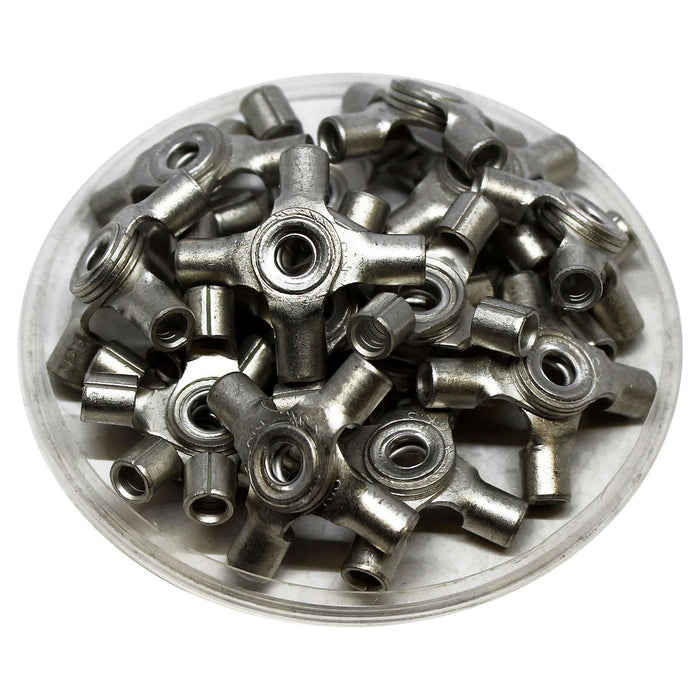

4WCN5 - Non Insulated 4 Way Connectors - 12 AWG to 10 AWG
Precio original
$10.36
-
Precio original
$10.36
Precio original
$10.36
$10.36
-
$10.36
Precio actual
$10.36
SKU 4WCN5
Quantity: 10 Pieces
Disponibilidad:
en stock, listo para ser enviado
Three and four (Y and X) wire connectors are the ideal solution when you need to splice multiple wires in your electrical system. Available in both vinyl insulation and non insulated.
Product Drawing:
None:
| Wire Range: | 12-10 AWG |
| L: | 1.18" (30.0mm) |
| D: | 0.22" (5.6mm) |
| E: | 0." (6.0mm) |
| D1: | 0.13" (3.4mm) |
| D2: | 0.16" (4.0mm) |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | #8 Stud |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
