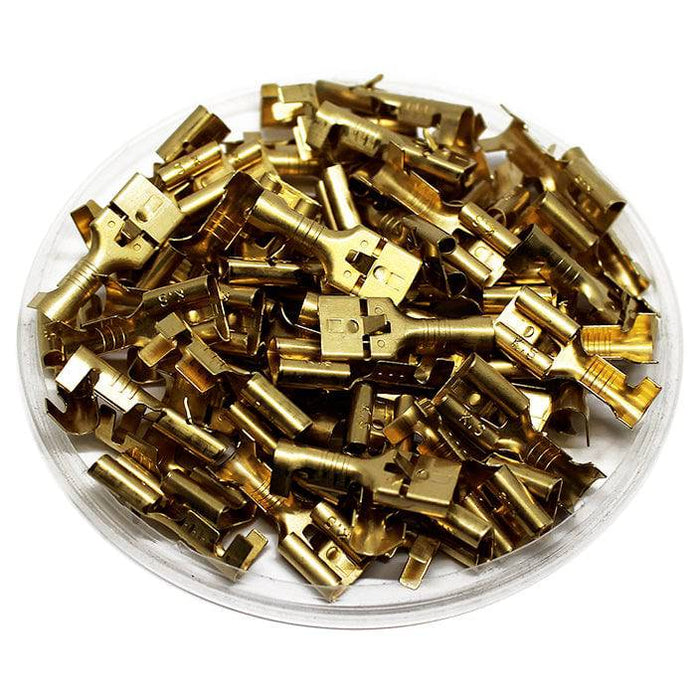

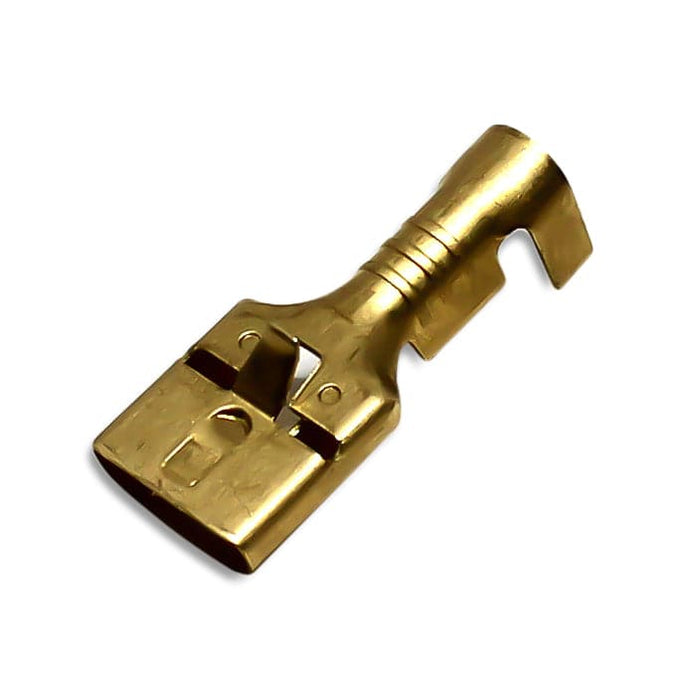

601LR - 16-14 AWG Female Open Barrel Quick Disconnect - Locking Tab - .250" x 0.032" NEMA Tab

Precio original $6.12 - Precio original $6.12
Precio original
$6.12
$6.12 - $6.12
Precio actual $6.12
SKU 601LR
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.

Dimensions & Features:

Wire Size: 16-14 AWG
L: 19.1mm (0.75")
F: 7.8mm (0.30")
W: 6.8mm (0.26")
D: 5.5mm (0.21")
D1: 3.5mm (0.13")
T: 4.5mm (0.17")
Nema Tab: 0.032 x 0.250" (0.8 x 6.35mm)
Material: Brass - Untinned
Surface Treatment: Standard Chemical Treatment
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
