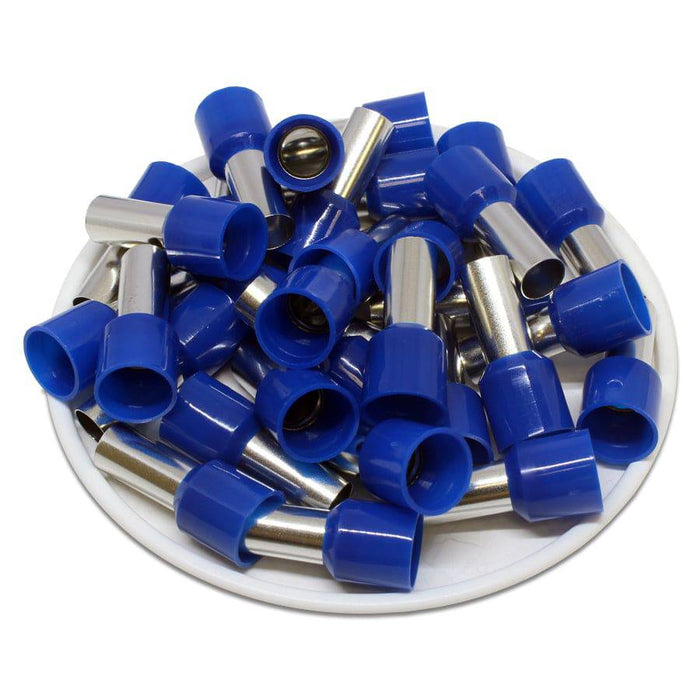

AD160012 - 6 AWG (12mm Pin) Insulated Ferrules - Blue

Precio original $6.22 - Precio original $6.22
Precio original
$6.22 - $6.22
Precio actual $6.22
SKU AD160012
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 6 AWG
Color: Blue
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 95A
L1: 22.0mm (0.87")

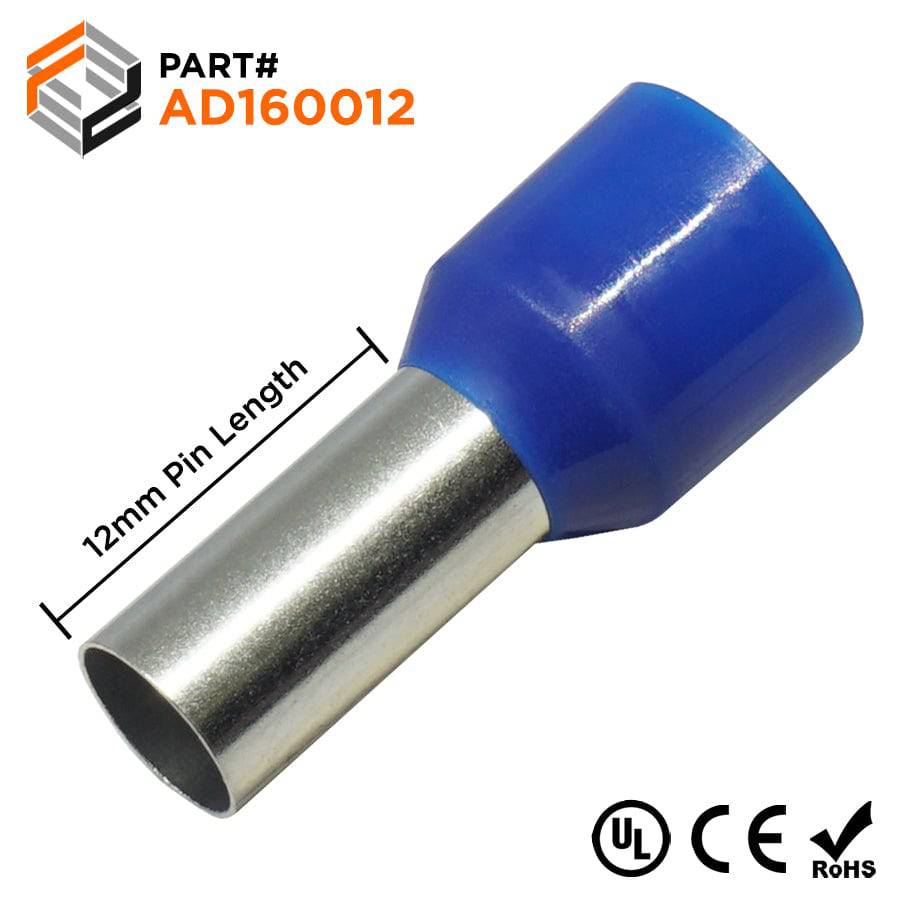

L2: 12.0mm (0.47")
D: 6.2mm (0.24")
D1: 5.8mm (0.228")
D2: 8.8mm (0.34")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: 30446705
Altech Corp: 2855.0 FID0612
American Electrical: 11121160
Automation Direct: BM-00614 V3AE000062
Crimp Supply: 13A11018
Eclipse: 701-087
Festo: 13069359
Greenlee: 477/12
McMaster-Carr: 7950K37 7950K144
Panduit: FSD84-12-C
Phoenix Contact: 3200564
Power Phase - Fastenal: 0749626

SPC Contact: SPC4530 84N2064
Thomas Betts: F2045
Tyco AMP: 2-966 067-6
Weidmuller: 9019260000
Wieland: 06.600.3327.0
ZF: V3AE0062 V3AE000062


Click to view product spec sheet:
