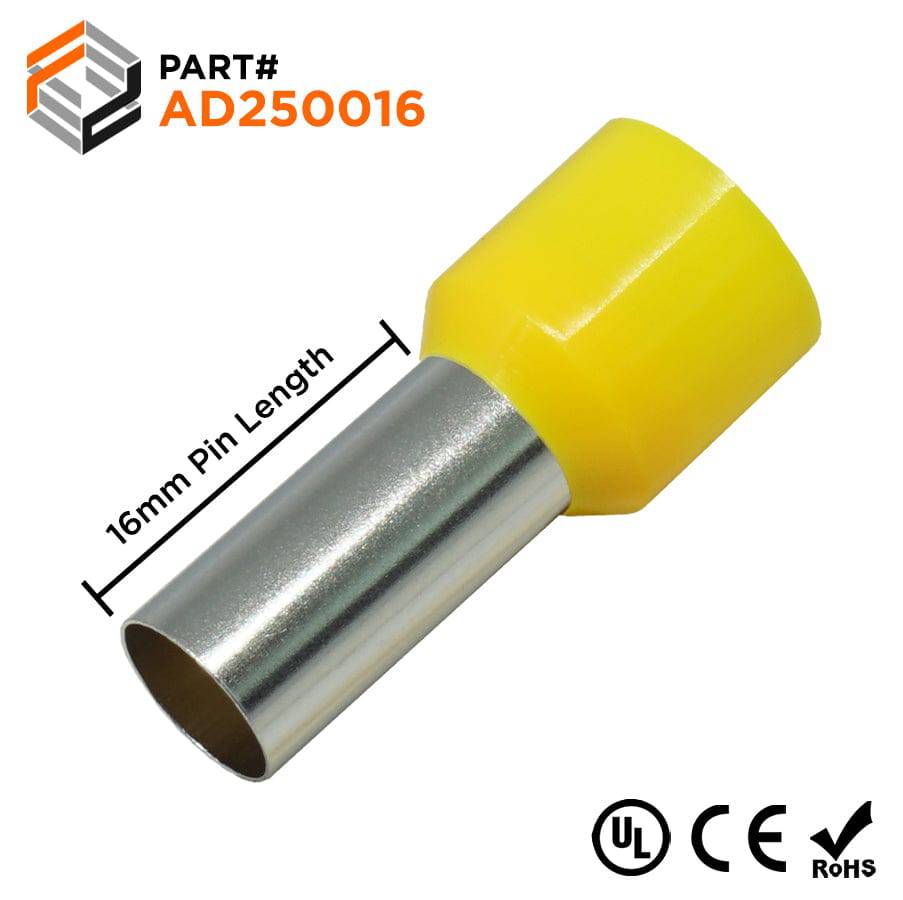

AD250016 - 4 AWG (16mm Pin) Insulated Ferrules - Yellow

Precio original $10.87 - Precio original $10.87
Precio original
$10.87 - $10.87
Precio actual $10.87
SKU AD250016
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 4 AWG
Color: Yellow
L1: 28.0mm (1.10")
L2: 16.0mm (.630")
D: 7.7mm (.303")
D1: 7.3mm (.287")
D2: 11.2mm (.441")
Material: Tin-Plated Copper
Max Electrical Rating: 105°C (221°F) - 600 Volts
Max Electrical Current: 125A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:


Cross References

Cross Reference Parts:
ABB: XUSD01891
Altech Corp: FID0416
American Electrical: 11161250
Greenlee: 478/16
McMaster-Carr: 7950K39 7950K146
Panduit: FSD85-16-L
Phoenix Contact: 3200577
Thomas Betts: F2047
Tyco AMP: 2-966 067-8
Weidmuller: 9019280000
ZF: V3AE0064


Click to view product spec sheet:

UL Certification
Reach Certification
RoHS3 Certification
