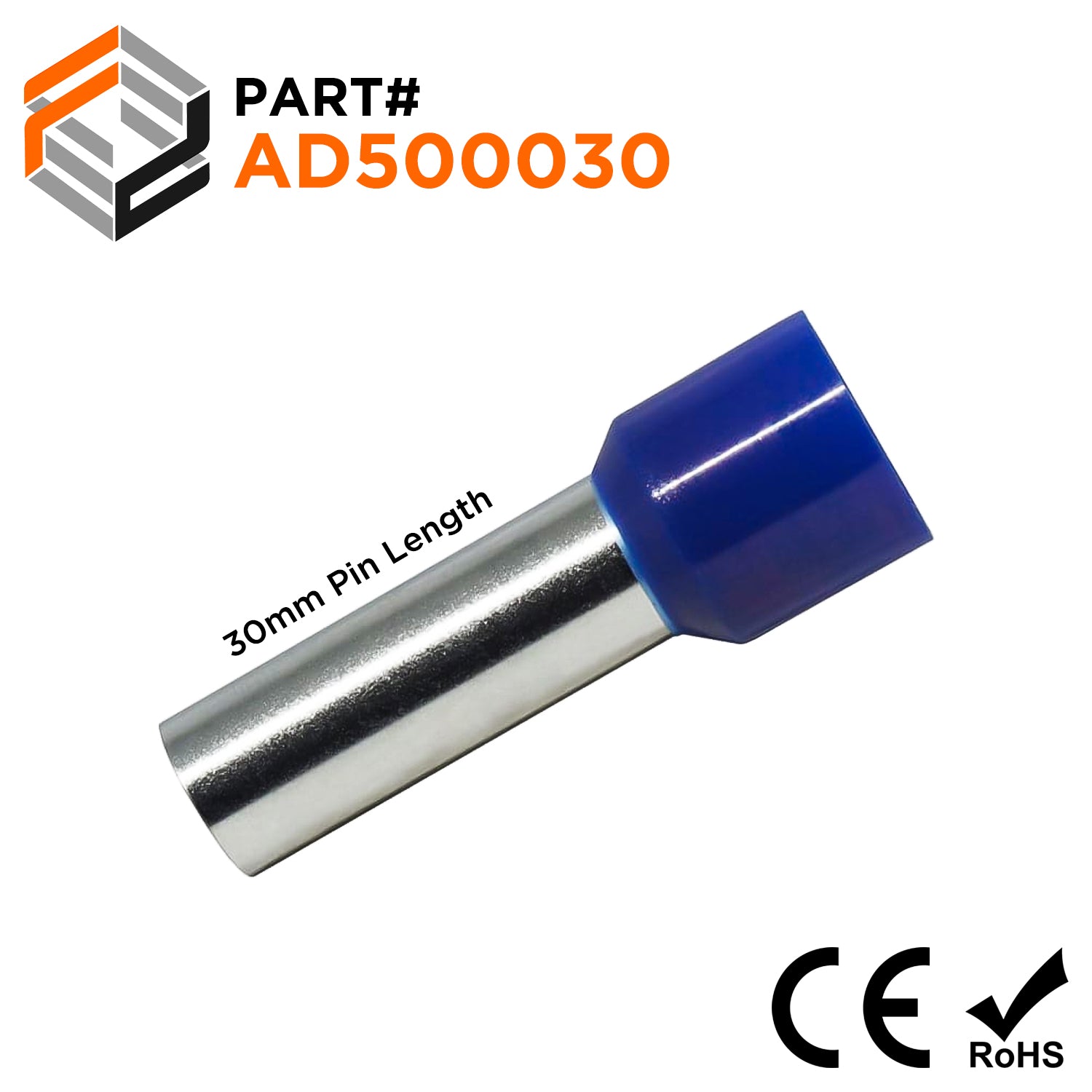

AD500030 - 1 AWG (30mm Pin) Insulated Ferrules - Blue

$18.52
SKU AD500030
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 1 AWG
Color: Blue
L1: 45.0mm (1.81")
L2: 30.0mm (1.18")
D: 10.9mm (0.42")
D1: 10.3mm (0.40")
D2: 15.0mm (0.59")
UL Approved: Yes
CE Certfied: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 195A
Material: Tin-Plated Copper

Technical Drawing:


Cross References

Cross Reference Parts:
Altech Corp:FID0130
ZF:V3AE0071

Documents

Click to view product spec sheet:

Videos

How to Crimp a Wire Ferrule?
