22-16 AWG Non Insulated Fork Terminals, 3/8" Stud, UL Approved, 100 Pieces - ANB1-10

Precio original $22.74 - Precio original $22.74
Precio original
$22.74
$22.74 - $22.74
Precio actual $22.74
SKU ANB1-10
Disponibilidad:
en stock, listo para ser enviado

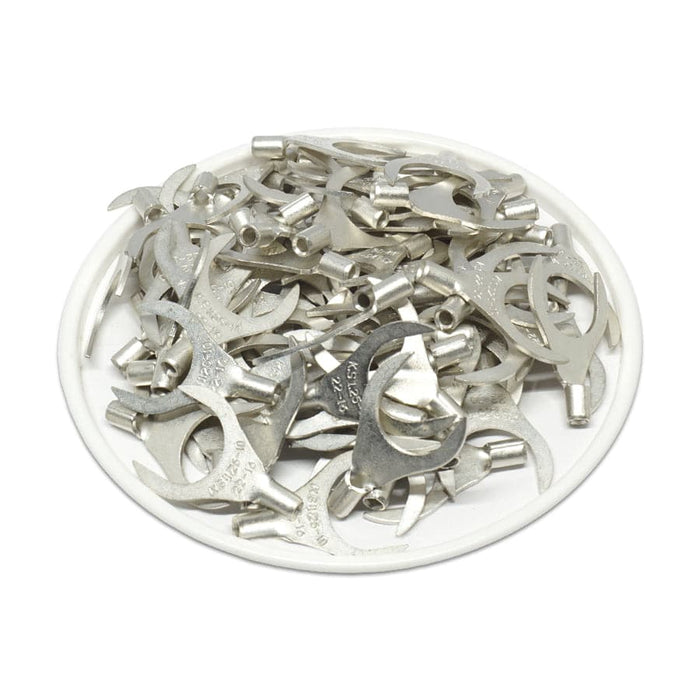

Piece Quantity: 100 Pieces

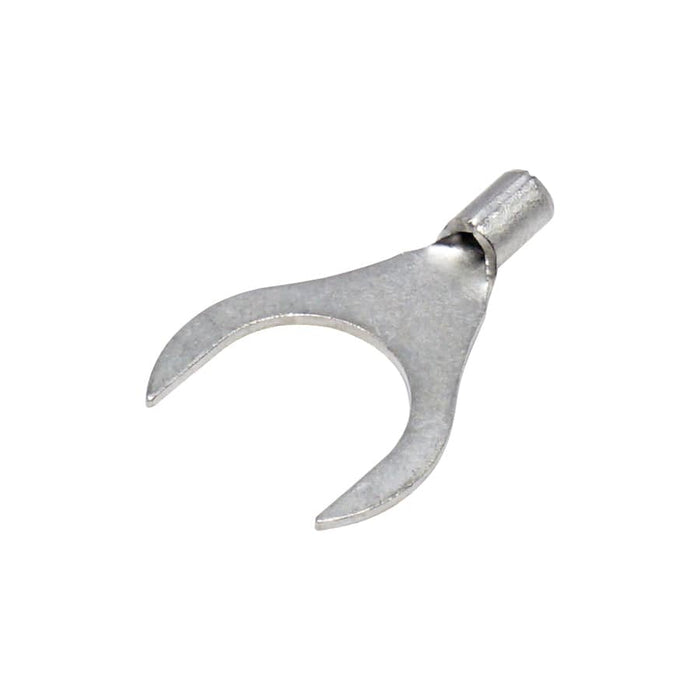

NON INSULATED FORK TERMINALS

Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.


Dimensions & Features:

Wire Size: 22-16 AWG
Stud Size: 3/8" Stud
T: 0.75mm (0.03")
L: 22.5mm (0.89")
F: 12.6mm (0.50")
E: 4.8mm (0.19")
W: 15mm (0.59")
D: 3.4mm (0.13")
D1: 1.7mm (0.07")
D2: 10.5mm (0.41")
Material: Tin Plated Copper
Seam: Brazed
Electrical Rating: 105°C - 600 Volts
Electrical Current: 18 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
