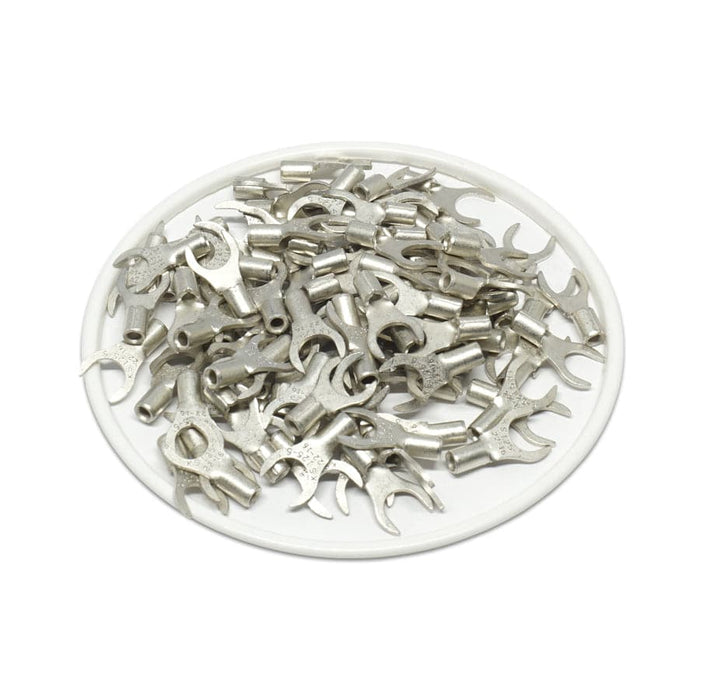

22-16 AWG Non Insulated Fork Terminals, #10 Stud, UL Approved, 100 Pieces - ANB1-5
Precio original
$9.98
-
Precio original
$9.98
Precio original
$9.98
$9.98
-
$9.98
Precio actual
$9.98
SKU ANB1-5
Disponibilidad:
en stock, listo para ser enviado

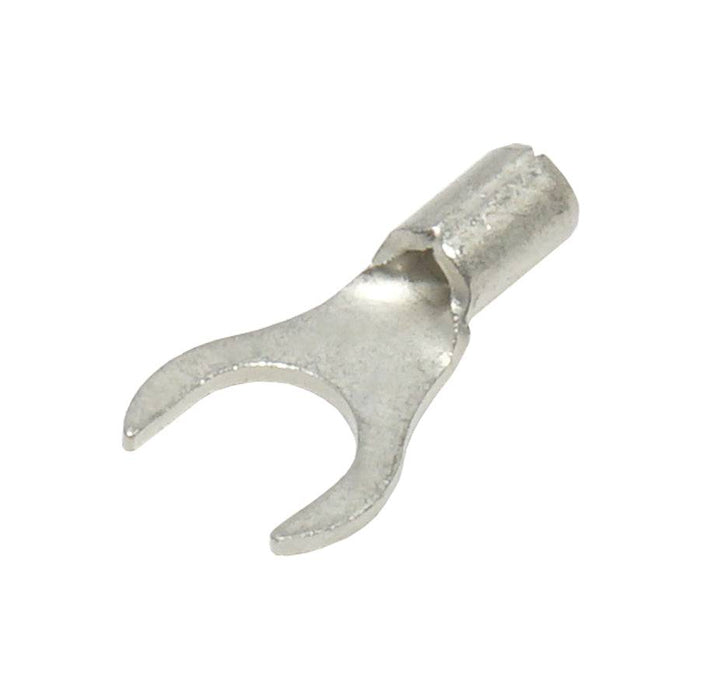

NON INSULATED FORK TERMINALS
Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Stud Size: | #10 Stud |
| D2: | 5.3mm (0.21") |
| W: | 8.0mm (0.32") |
| F: | 7.0mm (0.28") |
| L: | 14.4mm (0.57") |
| E: | 4.8mm (0.19") |
| D: | 3.4mm (0.13") |
| D1: | 1.7mm (0.07") |
| T: | 0.75mm (0.03") |
| Material: | Tin Plated Copper |
| Seam: | Brazed |
| Electrical Rating: | 105°C - 600 Volts |
| Electrical Current: | 18 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
