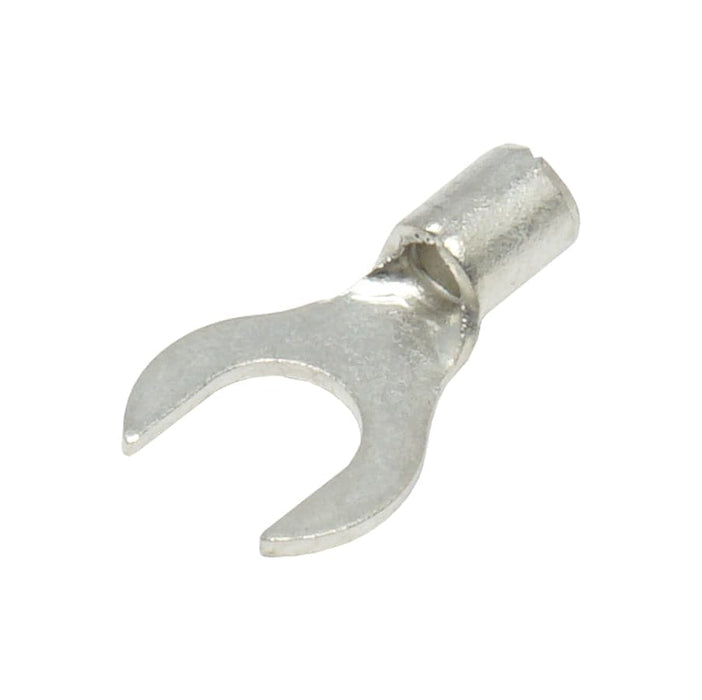

16-14 AWG Non Insulated Fork Terminals, #10 Stud, UL Approved, 100 Pieces - ANB2-5

Precio original $14.00 - Precio original $14.00
Precio original
$14.00
$14.00 - $14.00
Precio actual $14.00
SKU ANB2-5
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 100 Pieces

NON INSULATED FORK TERMINALS

Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.

Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: #10 Stud
D2: 5.3mm (0.21")
W: 9.5mm (0.37")
F: 7.4mm (0.29")
L: 15.6mm (0.61")
E: 4.8mm (0.19")
D: 4.1mm (0.16")
D1: 2.3mm (0.09")
T: 0.8mm (0.03")
Material: Tin Plated Copper
Seam: Brazed
Electrical Rating: 105°C - 600 Volts
Electrical Current: 30 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
