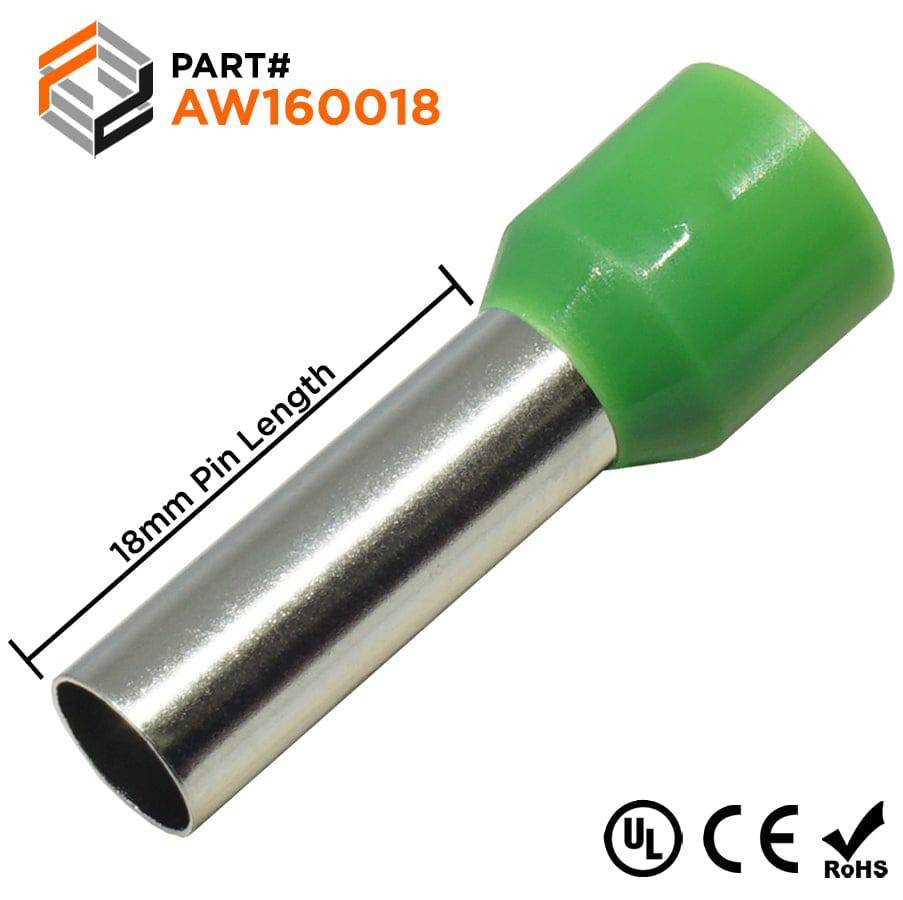

AW160018 - 6AWG (16mm2) 18mm Pin - Vinyl Insulated Ferrules - Green
Precio original
$7.46
-
Precio original
$7.46
Precio original
$7.46
$7.46
-
$7.46
Precio actual
$7.46
SKU AW160018
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUSG01889
Altech Corp: 2215.0 FII0618
American Electrical: 11182160
Automation Direct: BM-00515 V3AE000030
Eclipse: 701-021
Greenlee: 177/GRL
Phoenix Contact: 3201330
Tyco AMP: 3-966 066-7
Weidmuller: 566000000
ZF: V3AE0030 V3AE000030
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 6 AWG |
| Color: | Green |
| Material: | Tin-Plated Copper |
| L1: | 28mm (1.10") |
| L2: | 18mm (0.71") |
| D: | 6.2mm (0.24") |
| D1: | 5.8mm (0.228") |
| D2: | 8.8mm (0.35") |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 95A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUSG01889
Altech Corp: 2215.0 FII0618
American Electrical: 11182160
Automation Direct: BM-00515 V3AE000030
Eclipse: 701-021
Greenlee: 177/GRL
Phoenix Contact: 3201330
Tyco AMP: 3-966 066-7
Weidmuller: 566000000
ZF: V3AE0030 V3AE000030
Documents
Click to view product spec sheet:
