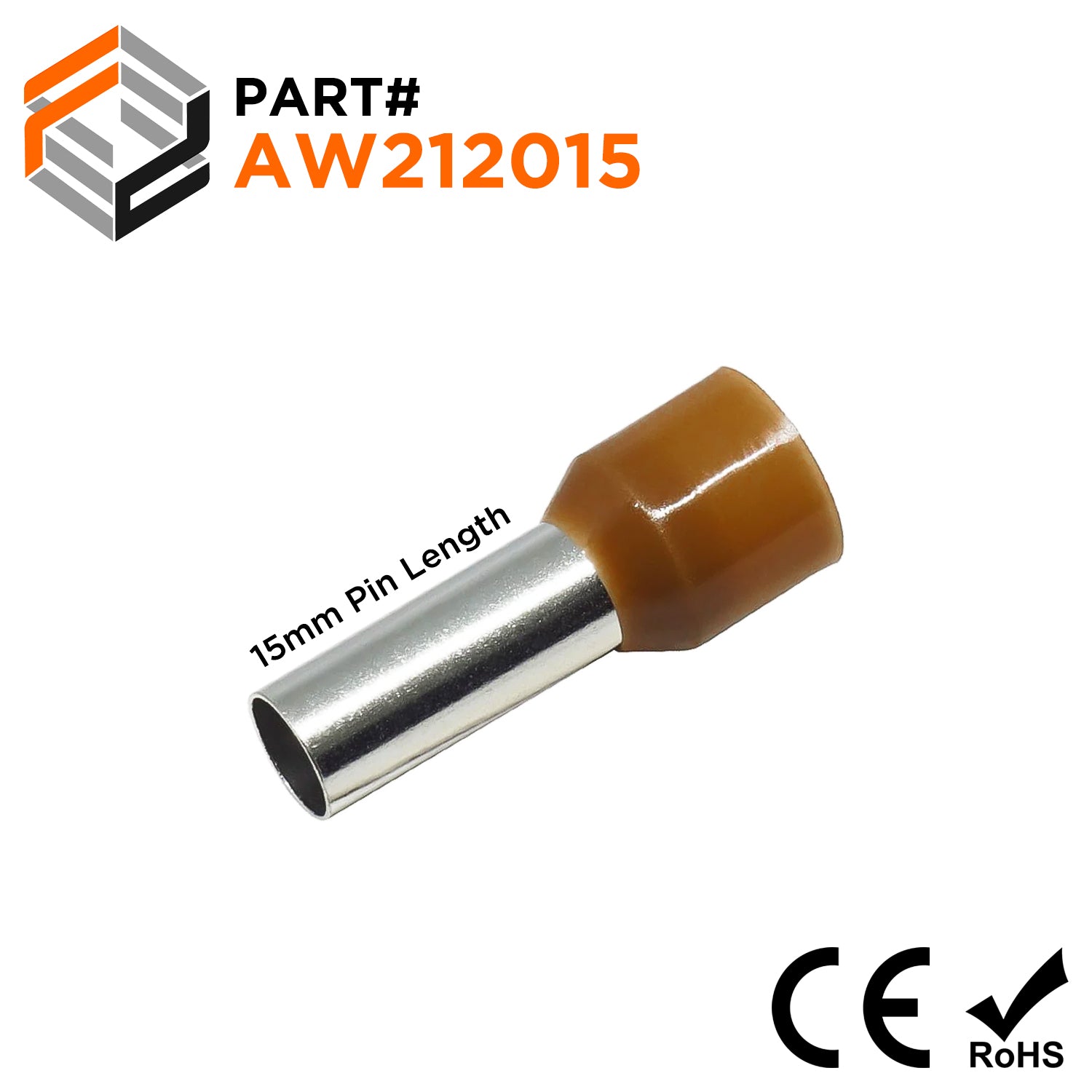

AW212015 - True 4 AWG (15mm Pin) Insulated Ferrules - Brown
Precio original
$11.06
-
Precio original
$11.06
Precio original
$11.06
$11.06
-
$11.06
Precio actual
$11.06
SKU AW212015
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
None
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | True 4 AWG |
| Color: | Brown |
| L1: | 27.0mm (1.06") |
| L2: | 15.0mm (.591") |
| D: | 6.3mm (.248") |
| D1: | 5.9mm (.230") |
| D2: | 9.0mm (.354") |
| Material: | Tin Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 125A |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
