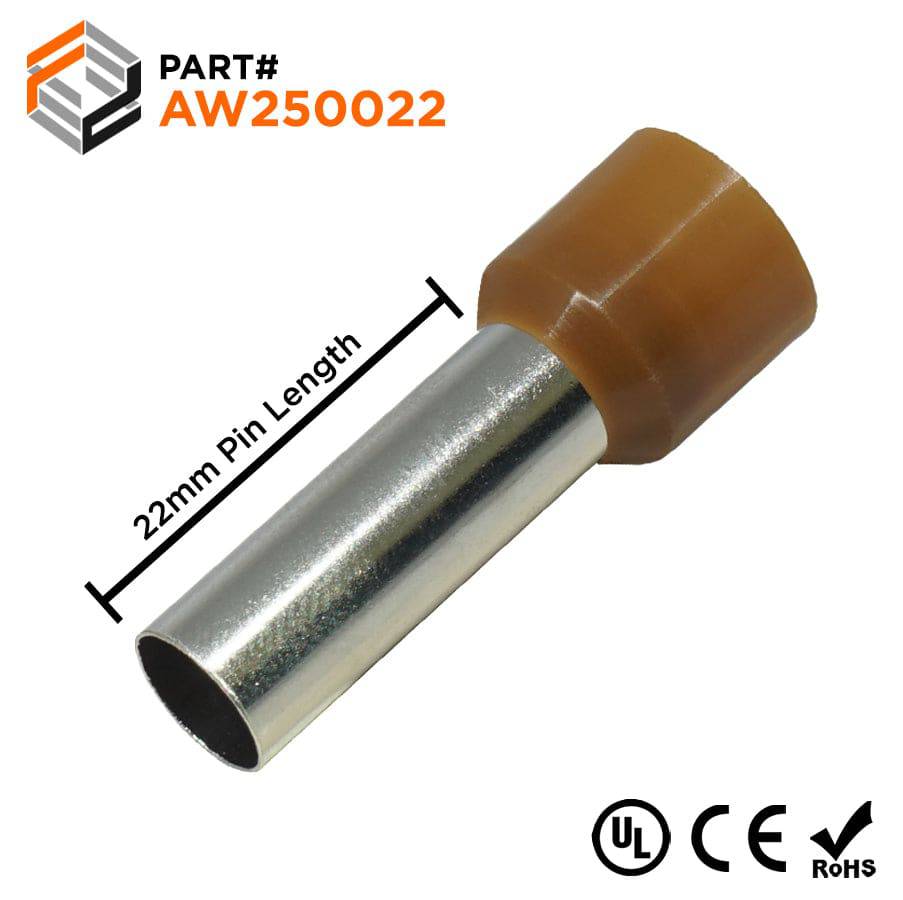

AW250022 - 4 AWG (22mm Pin) Insulated Ferrules - Brown

Precio original $12.73 - Precio original $12.73
Precio original
$12.73
$12.73 - $12.73
Precio actual $12.73
SKU AW250022
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 4 AWG
Color: Brown
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 125A
L1: 33.0mm (1.30")
L2: 22.0mm (0.86")
D: 7.7mm (0.30")
D1: 7.3mm (0.28")
D2: 11.2mm (0.44")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:

ABB: XUSG01897
Altech Corp: 2272.0 FII0422
American Electrical: 11222250
Eclipse: 701-043
Greenlee: 178/BRL
Tyco AMP: 3-966 066-9
Weidmuller: 317100000
ZF: V3AE0032

Documents

Click to view product spec sheet:
