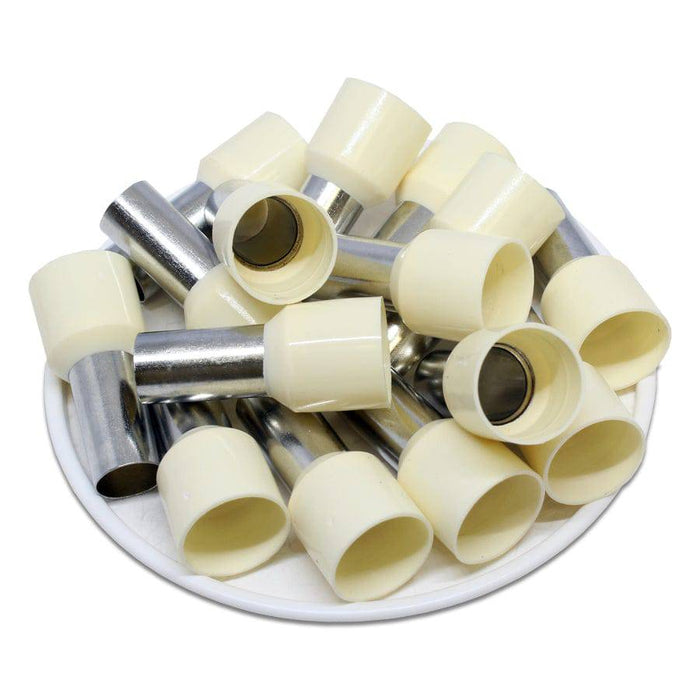

AW350016 - 2 AWG (16mm Pin) Insulated Ferrules - Beige
Precio original
$13.82
-
Precio original
$13.82
Precio original
$13.82
$13.82
-
$13.82
Precio actual
$13.82
SKU AW350016
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUSG01900
Altech Corp: 2276.0 FII0216
American Electrical: 11162350
Automation Direct: BM-00517 V3AE000033
Crimp Supply: 13A11020
Eclipse: 701-044
Greenlee: 479/25/16
McMaster-Carr: 7950K2
Panduit: FSF86-25-L
Phoenix Contact: 3201071
Tyco AMP: 4-966 066-0
Weidmuller: 317200000
ZF: V3AE0033 V3AE000033
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 2 AWG |
| Color: | Beige |
| L1: | 30mm (1.18") |
| L2: | 16mm (0.63") |
| D: | 8.7mm (0.34") |
| D1: | 8.3mm (0.33") |
| D2: | 12.7mm (0.50") |
| Material: | Tin Plated Copper |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 170A |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUSG01900
Altech Corp: 2276.0 FII0216
American Electrical: 11162350
Automation Direct: BM-00517 V3AE000033
Crimp Supply: 13A11020
Eclipse: 701-044
Greenlee: 479/25/16
McMaster-Carr: 7950K2
Panduit: FSF86-25-L
Phoenix Contact: 3201071
Tyco AMP: 4-966 066-0
Weidmuller: 317200000
ZF: V3AE0033 V3AE000033
Documents
Click to view product spec sheet:
