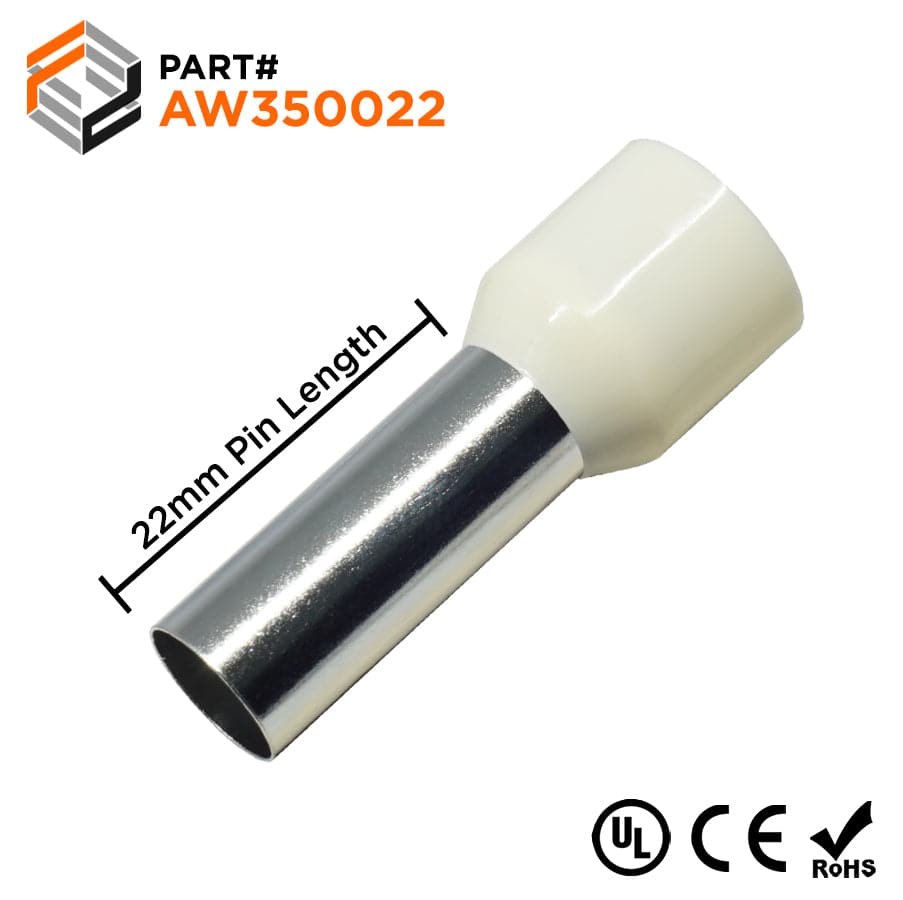

AW350022 - 2 AWG (22mm Pin) Insulated Ferrules - Beige

SKU AW350022
Piece Quantity

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Wire Size: 2 AWG UL Approved: Yes
Color: Beige CE Certified: Yes
L1: 36.0mm (1.42") RoHS Compliant: Yes
L2: 22.0mm (.866") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 8.7mm (.343") Max Electrical Current: 170A
D1: 8.3mm (.327") Material: Tin Plated Copper
D2: 12.7mm (.50")


Cross Reference Parts:
