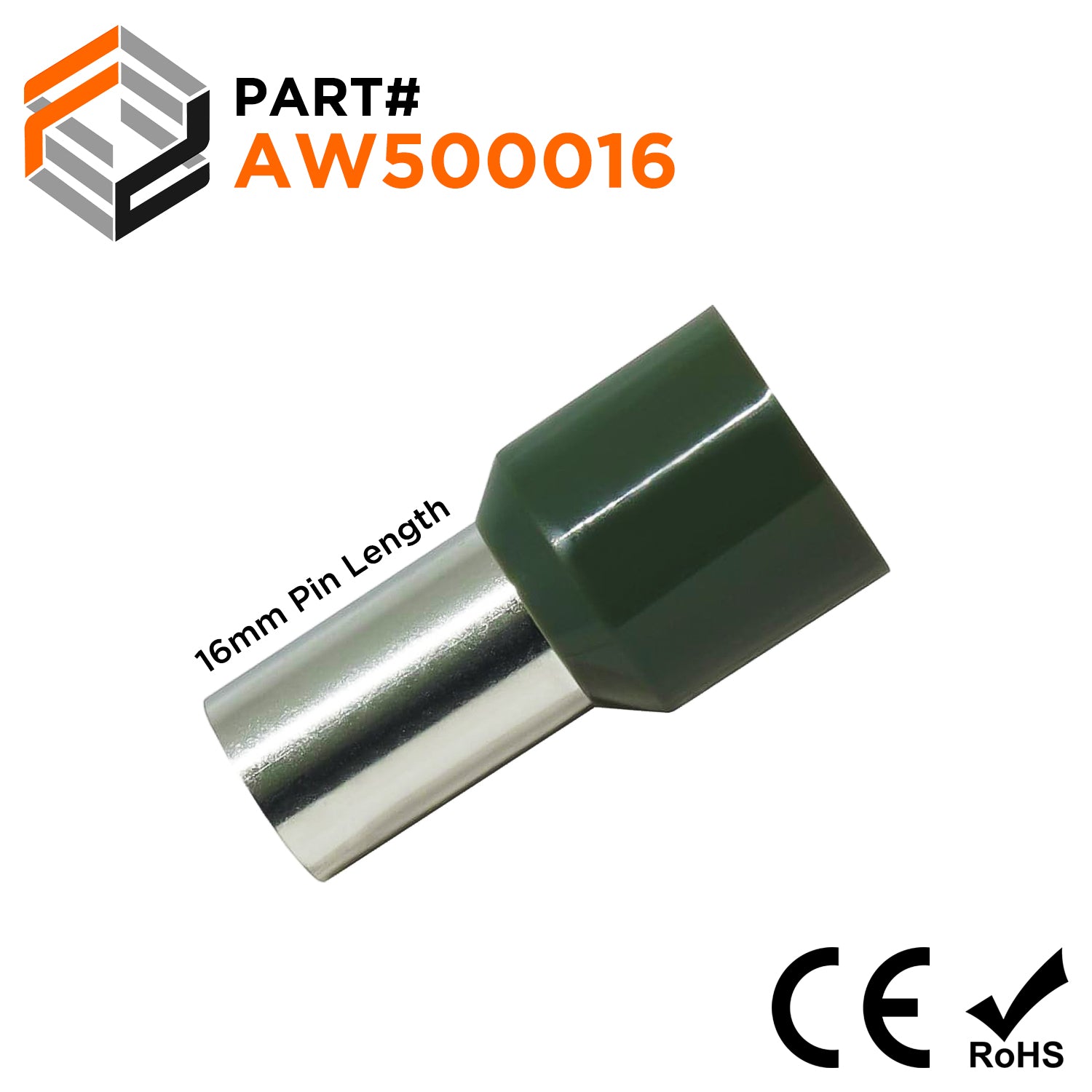

AW500016 - 1 AWG (16mm Pin) Insulated Ferrules - Olive Green

Precio original $14.31 - Precio original $14.31
Precio original
$14.31
$14.31 - $14.31
Precio actual $14.31
SKU AW500016
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 50 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 1 AWG
Color: Olive Green
L1: 32mm (1.26")
L2: 16mm (0.63")
D: 10.9mm (0.43")
D1: 10.3mm (0.41")
D2: 15mm (0.59")
UL Approved: Yes
CE Certfied: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105°C (221°F) - 600 Volts
Max Electrical Current: 195A
Material: Tin-Plated Copper

Technical Drawing:

Cross References

Cross Reference Parts:
None


Documents

Click to view product spec sheet:

Videos

How to Crimp a Wire Ferrule?
