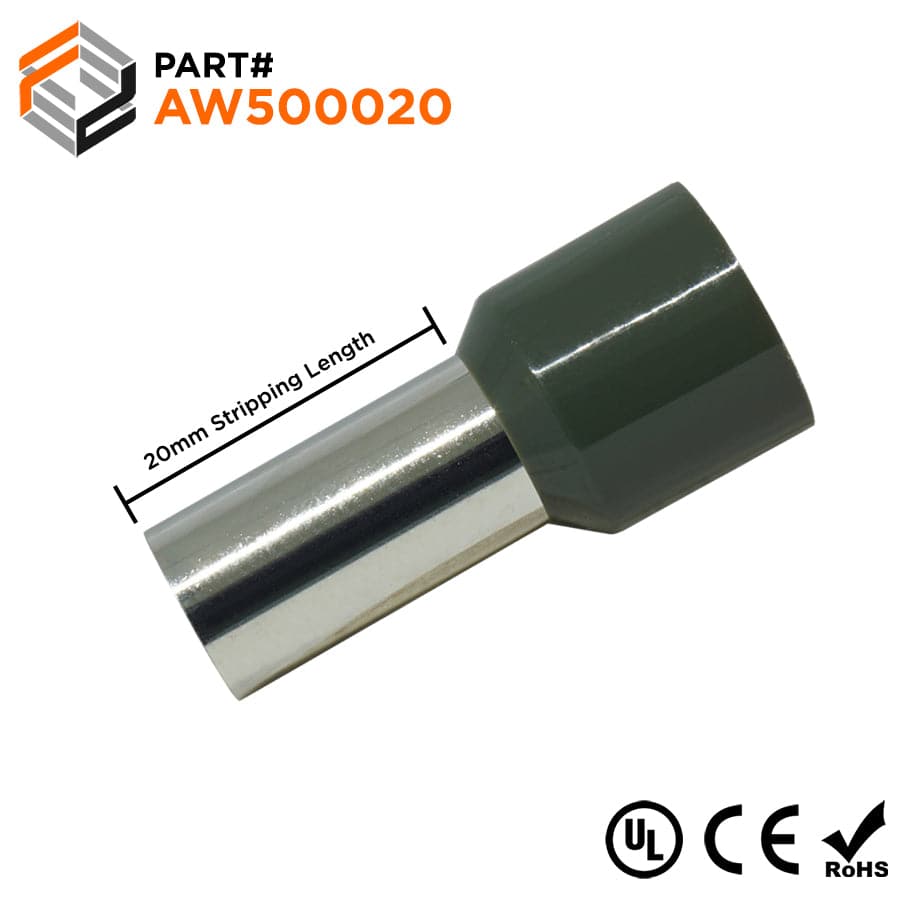

AW500020 - 1 AWG (20mm Pin) Insulated Ferrules - Olive Green
Precio original
$14.72
-
Precio original
$14.72
Precio original
$14.72
$14.72
-
$14.72
Precio actual
$14.72
SKU AW500020
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
Cross Reference Parts:
Automation Direct: V30AE000035
Crimp Supply: 13A11021
GE Renewable Energy: 104W4400P013
Z+F: V30AE000035
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 1 AWG |
| Color: | Olive Green |
| L1: | 36mm (1.42") |
| L2: | 20mm (0.79") |
| D: | 10.9mm (0.43") |
| D1: | 10.3mm (0.41") |
| D2: | 15mm (0.59") |
| UL Approved: | Yes |
| CE Certfied: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 195A |
| Material: | Tin-Plated Copper |
Technical Drawing:
Cross References
Cross Reference Parts:
Automation Direct: V30AE000035
Crimp Supply: 13A11021
GE Renewable Energy: 104W4400P013
Z+F: V30AE000035
Documents
Click to view product spec sheet:
Videos
How to Crimp a Wire Ferrule?
