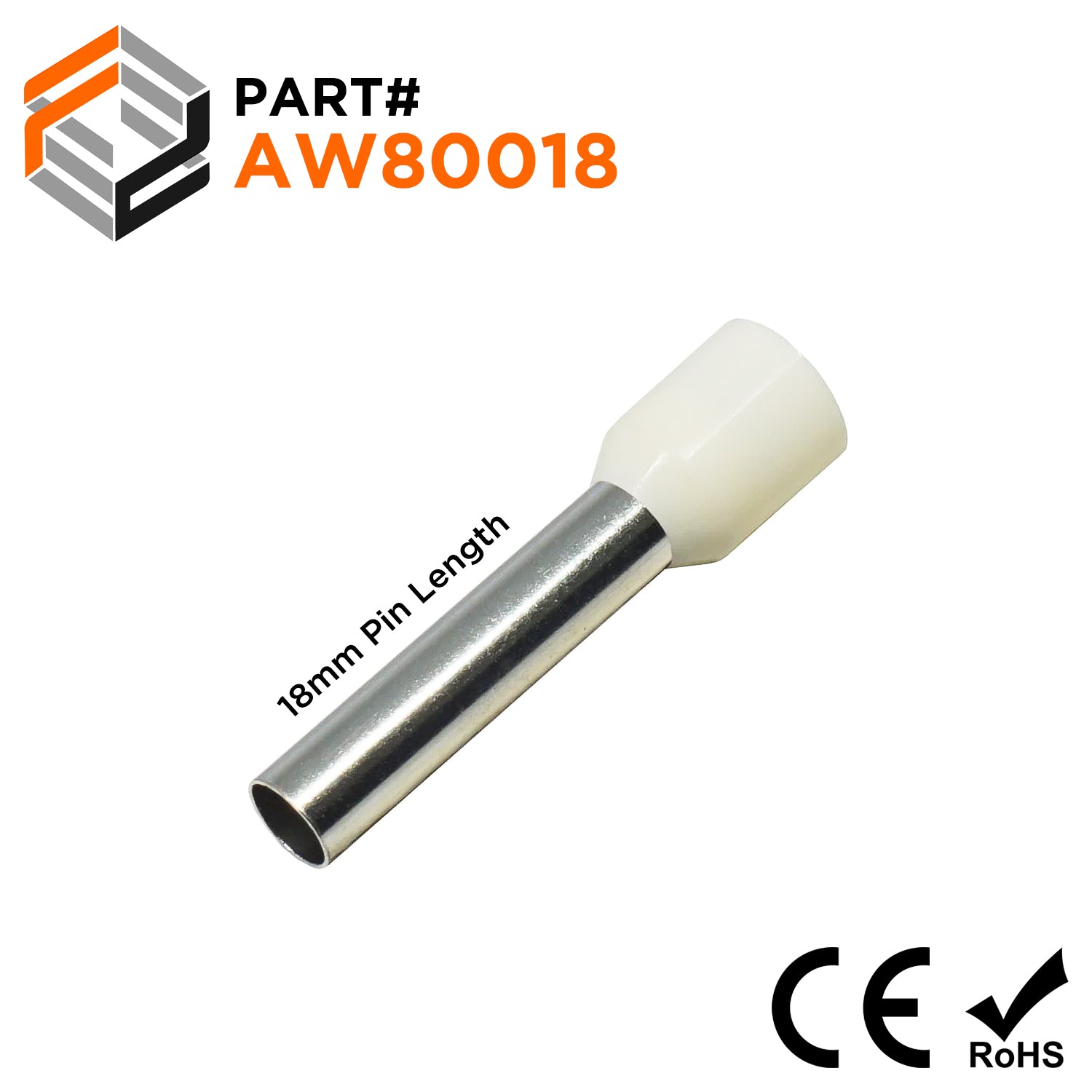

AW80018 - True 8 AWG (18mm Pin) Insulated Ferrules - Beige

SKU AW80018
Piece Quantity

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Wire Size: True 8 AWG UL Approved: Yes
Color: Ivory CE Certified: Yes
L1: 28.0mm (1.10") RoHS Compliant: Yes
L2: 18.0mm (.709") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 4.2mm (.165") Max Electrical Current: 70A
D1: 3.7mm (.147")
D2: 5.7mm (.224")


Cross Reference Parts:


Click to view data sheet

How to Crimp a Wire Ferrule?
