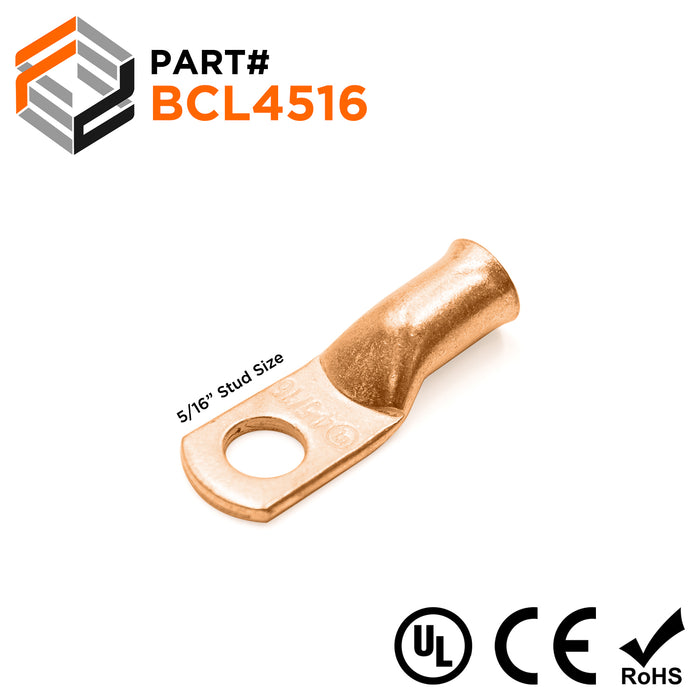

BCL4516 - 4 AWG One-Hole Battery Lug - 5/16 Stud Size
Precio original
$0.78
-
Precio original
$0.78
Precio original
$0.78
$0.78
-
$0.78
Precio actual
$0.78
SKU BCL4516
Disponibilidad:
en stock, listo para ser enviado

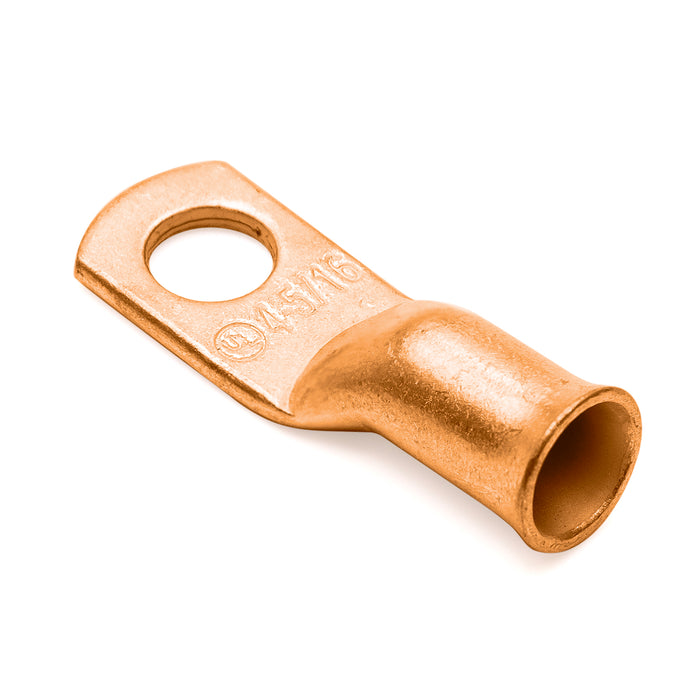

Tubular copper battery lugs widely used in the electrical wire connecting area such as home appliances, mechanical equipment factory, power distribution cabinet, etc. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 4 AWG |
| L: | 38.9mm (1.53") |
| L1: | 9.9mm (0.39") |
| D: | 13.8mm (0.54") |
| D1: | 9.1mm (0.36") |
| D2: | 7.1mm (0.26") |
| B: | 13.5mm (0.53") |
| E: | 8.1mm (0.32") |
| F: | 2.1mm (0.08") |
| Terminal Material: | Copper |
| Stud Size: | 5/16" |
| Temperature Rating: |
90°C |
| Voltage Rating: | 35KV |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
