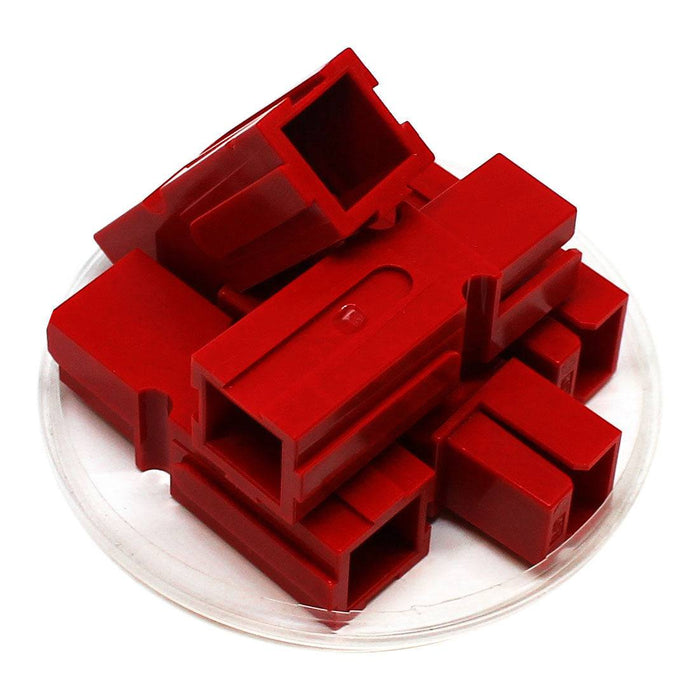

BMC1M-RD - 12-6 AWG Single Pole Housing - Up to 75AMP - Red
Precio original
$1.30
-
Precio original
$1.30
Precio original
$1.30
$1.30
-
$1.30
Precio actual
$1.30
SKU BMC1M-RD
Disponibilidad:
en stock, listo para ser enviado
The BMC1M Series is the second smallest battery modular housing size. They can be used for wire-to-wire, wire-to-board, and wire-to-busbar applications. Wire sizes from 16 AWG (1.50mm²) to 6 AWG (16.00mm²) offer power capabilities up to 75 amps.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 16-06 AWG |
| Color | Red |
| L | 1.90" (48mm) |
| W: | 0.53" (13.5mm) |
| H: | 0.63" (17mm) |
| Spring Material: | Stainless Steel |
| Housing Material: | Polycarbonate (PC) |
| Temperature Range: | -20°C to 125°C |
| AMP Rating: | 75AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
