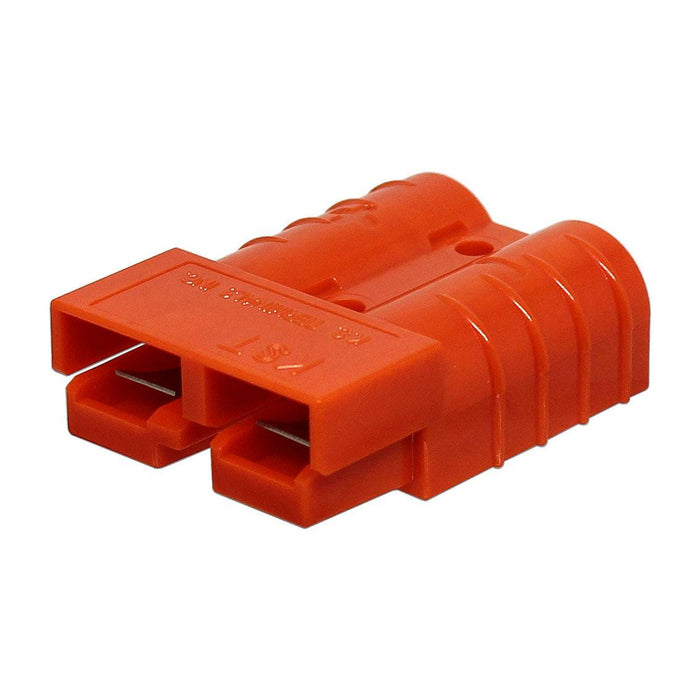

BMC2S-OR - 12-6 AWG Two Pole Housing - Up to 50AMP - Orange
Precio original
$1.28
-
Precio original
$1.28
Precio original
$1.28
$1.28
-
$1.28
Precio actual
$1.28
SKU BMC2S-OR
Disponibilidad:
en stock, listo para ser enviado
The BMC2S Series is the smallest battery modular housing size among the two pole housing. They can be used for wire-to-wire, wire-to-board, and wire-to-busbar applications. Wire sizes from 16 AWG (1.50mm²) to 6 AWG (16.00mm²) offer power capabilities up to 50 amps.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 16 - 06 AWG |
| Color | Orange |
| L | 1.9" (49mm) |
| W: | 1.4" (34.9mm) |
| H: | 0.63" (15.9mm) |
| Spring Material: | Stainless Steel |
| Housing Material: | Polycarbonate (PC) |
| Temperature Range: | -20°C to 75°C |
| AMP Rating: | 50AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
